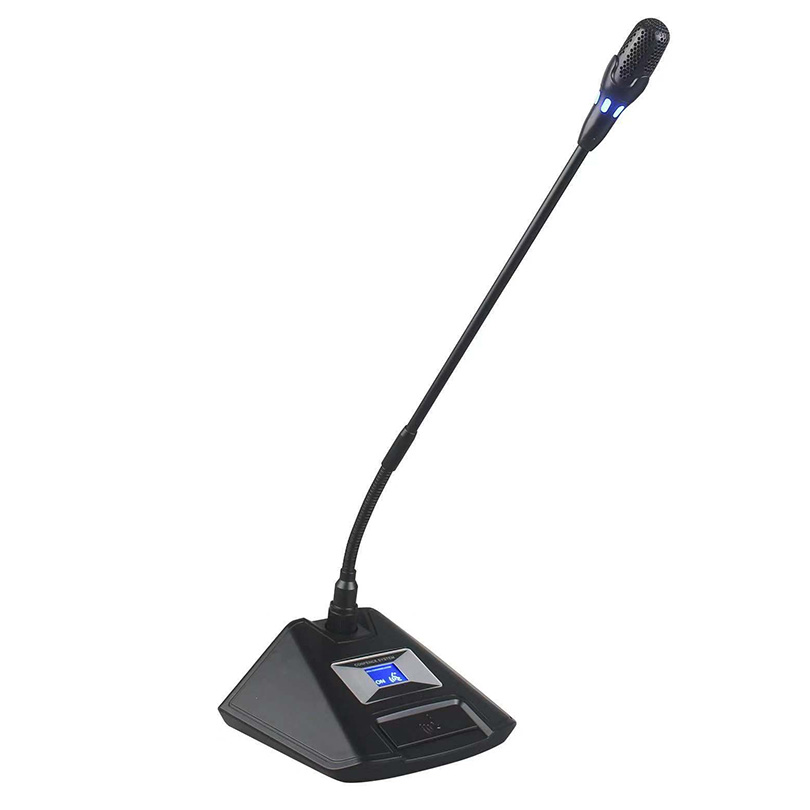

MODE:806

Full digital control design

Integrated speech and video tracking function

With display screen to display microphone status

The unit is powered by the system host. The input voltage is 24 V, which belongs to the safe range

The unit has a 2 m * 1.5 m 8p connection line for the "t" type one-way connection of the system, and the extension line can be customized according to the actual situation of the venue.

The unit microphone pole is separated from the base and fixed in a spiral way to eliminate noise, which is more protective for transportation.

The winding condenser microphone is equipped with a replaceable wind shield

The microphone net head has a ring-shaped red light ring, which can display the microphone speech status

Automatic power off function: the microphone will turn off automatically 30 seconds after the end of the speech

The chairman has the priority function of forcing the speaker to cut off the microphone

The number of chairman units in the system is not limited and can be placed at any position in the circuit

The chairman unit can temporarily cut off the speech of the representative unit at any time of the meeting process, and prompt the representative unit that is speaking. 6. To effectively manage the whole meeting process, input and output 8p T-line 2.1mx1.5m

Input unidirectional Condenser Microphone Mic

Working voltage DC24 V (supplied by host)

Current loss 40mA

Sensitivity - 55dB

Signal to noise ratio 72db

Microphone current sensing - 42db ± 5.1db

Frequency response 90-11khz
