BASIC INFO
Features:

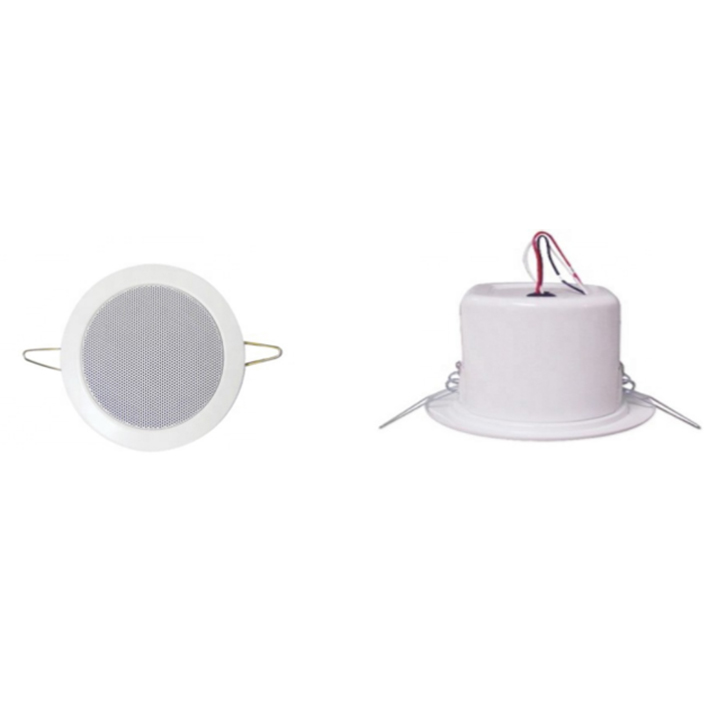

1.Mini 2.5" Passive Speaker Ceiling
2.Built in 100V/70V transformer ,Power taps at 3w/6w
3.Metal grille and metal baffle
4.Paint in white color
5.Fast installation by using movable clamp.
6.Factory price,can getbig discount for big order.
Specifications:
|
Model
|
CS-26wu
|
CS-36WU
|
CS-46WU
|
CS-66WU
|
|
Power
|
3W/6W
|
3W/6W
|
3W/6W
|
3W/6W
|
|
Line Input
|
100v
|
100v
|
100v
|
100v
|
|
Speaker Unit
|
2.5"x1
|
2.5"x1
|
2.5"x1
|
2.5"x1
|
|
Sensitivity
|
87dB
|
87dB
|
89dB
|
89dB
|
|
Freq.Resp
|
120-20KHZ
|
120-20KHZ
|
90-18KHZ
|
100-20KHZ
|
|
Dimension
|
103*80mm
|
101*60mm
|
135*80mm
|
135*113mm
|
|
Hole for mounting
|
Ø95mm
|
Ø95mm
|
Ø112mm
|
Ø112mm
|
|
Net Weight
|
0.4kg
|
0.4kg
|
0.5kg
|
0.85kg
|
|
eMaterial
|
ABS body with aluminum grille
|
Iron body with aluminum grill
|
Iron body with aluminum grill
|
Iron body with aluminum grille
|
