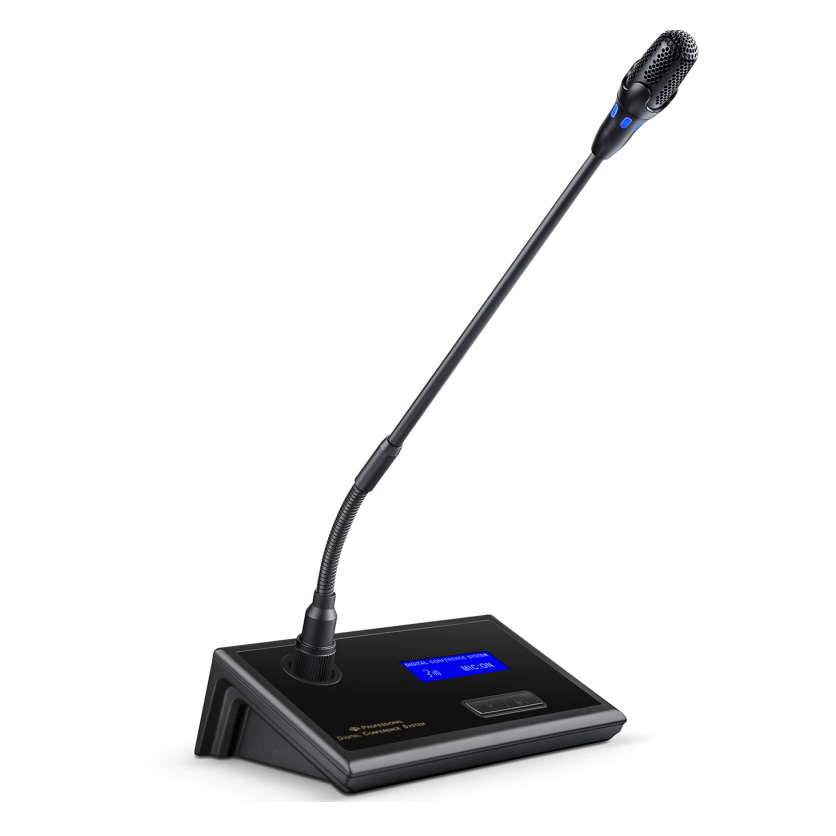

Mode : 706

Product features:

1. All digital control design, microphone unit adopts the design of super cardioid condenser microphone, to achieve high quality sound pickup

2. With LED light display screen, the microphone switch status can be displayed in real time

3. Voice control power off function: the microphone will automatically turn off 30 seconds after the end of the speech

4. The unit is a passive device, powered by the system host, and the input voltage is DC24 V, which belongs to the safe range

5. The number of chairman units in the system is unlimited and can be placed at any position in the circuit

6. The chairman priority control button can be set to permanently terminate or suspend the speech status of all speakers

7. The unit has a 2 m * 1.5 m 8p connection line for the "t" type one-way connection of the system, and the extension line can be customized according to the actual situation of the venue.

8. The unit microphone pole is separated from the base, and is fixed in a spiral way to eliminate noise, which is more protective for transportation.

9. Winding condenser microphone with replaceable wind shield

10. The microphone unit is equipped with a red light ring. When the microphone is turned on, the red light ring will be on, which is convenient to display the current working state of the microphone;

Technical parameters:

Input and output: 8P-DIN t-wire

Input: cardioid directional electret

Sensitivity: - 46 dbv / PA

Frequency response: 20Hz ~ 20KHz

Input impedance: 2K?

Directivity: 0 ° / 180 ° > 20 dB (1 kHz)

Equivalent noise: 20 DBA (SPL)

Maximum sound pressure level of microphone: 125 dB (THD < 3%)

SNR: > 80dB

Channel crosstalk: > 80dB

Total harmonic distortion: < 0.05%

Color: Black

Installation mode: Desktop
