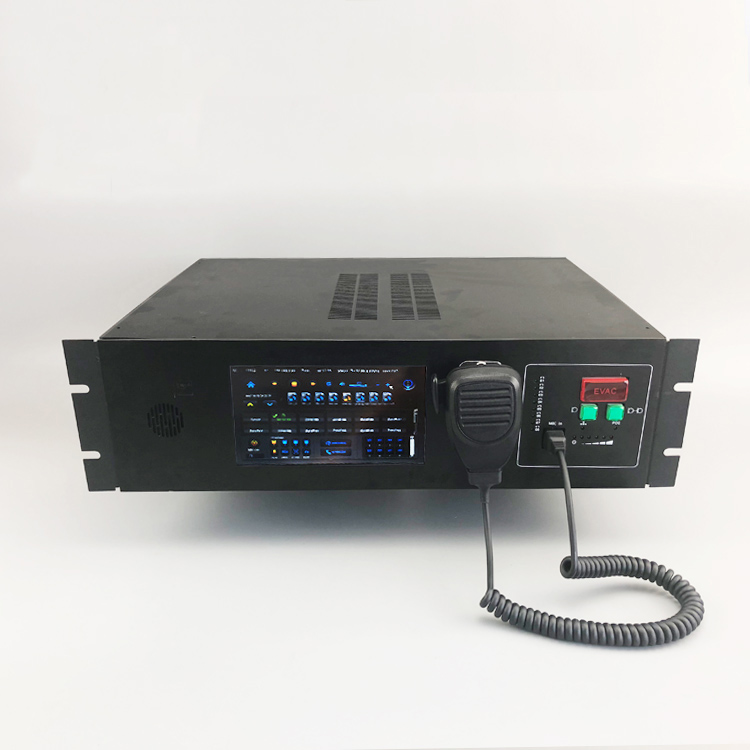

School Bell Scheduling IP PA system With EVAC

LU-IPEV

•  Industrial touch Panel 7’ LED control with powerful function.

•  High performance ARM processor, can realize the excellent network audio transmission performance.
•  B/S structure and can be managed via web browser.
•  Advanced network structure design, support standalone running without server.
•  Built-in 2 *20 W 8 ohms Amplifier and connect with 8 ohms speaker directly without extra Amplifier.
•  High reliability and stability with industrial level. Working Temperature between (-40 ~85 degree).
•  Build in HUB for Network in and Network out (TCP/IP).
•  POE function optional.
•  USB and SD card plug and play music function available.
•  12 V~24 V widely range power supply
•  XLR professional connector can connect with professional microphone.

•  Timing program schedule build in to do system control automatically
•  8 sub zone available(800 W extra/sub-zone available) and no limitation for IP Zone.
•  32 extra triggers for EVAC/Fire Alarm available to adding dry contacts extra boards
•  Announcement Recording automatically function available for tracing.
•  RS Link control over network available can be easily
•  Communication delay < 50 ms on the top level of IP PA system.
•  Announcing and talk back very flexible.

Rack mounted (3U-19 inches)
