POE-Dante Network Public address system

BASIC INFO

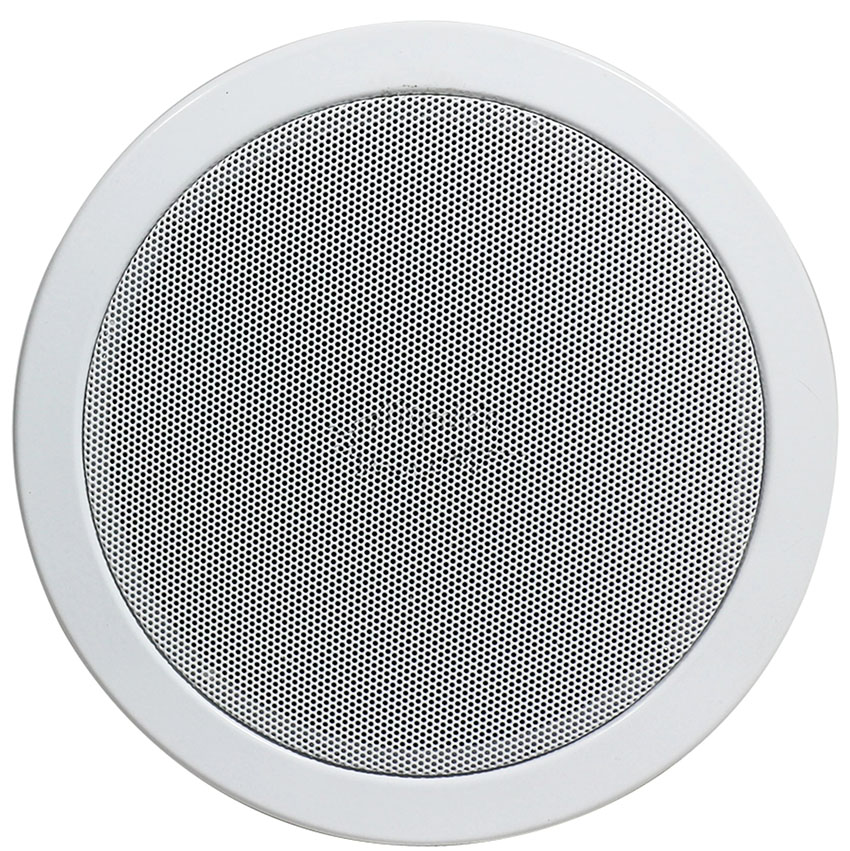

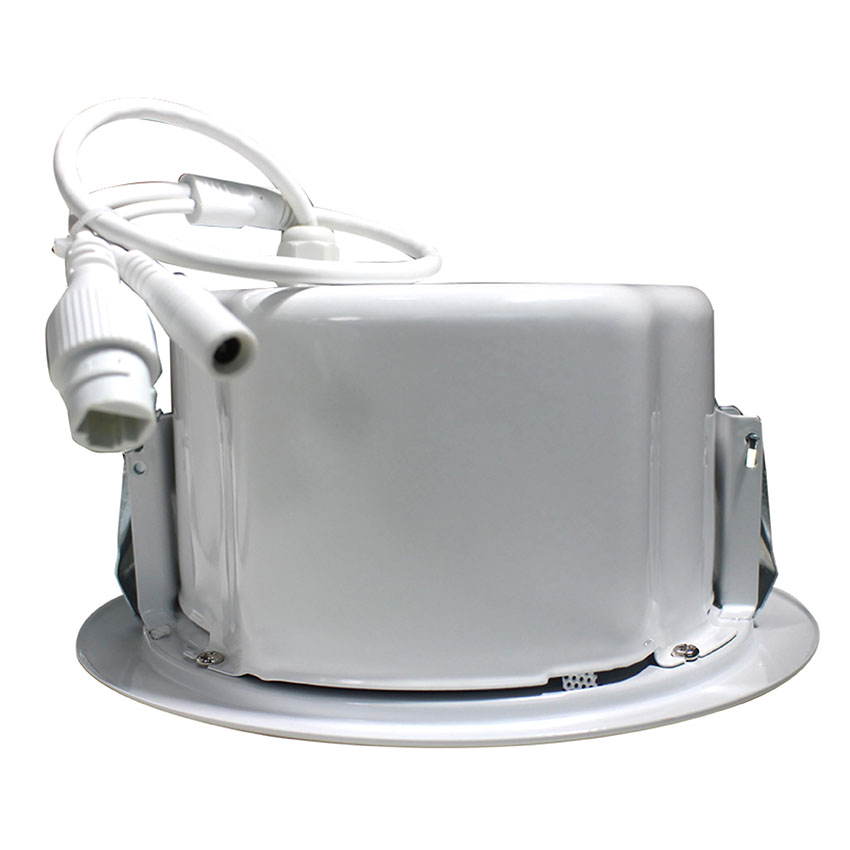

Dante DP 615 POE-Dante Network Public address system 15W POE power supply ceiling speaker controlled by a software

Dante DP PoE Speaker can realize its multifunction the POE power supply or 2 4VDC, audio transmission and signal control via a RJ45 Ethernet port. It can obtain power supply from any Ethernet switch of 802.3 or abovestandard.

Over Dante™ Ethernet that transmits 24-bit audio (44.1K/48KHz) and its control signal can be routed through the Dante™ Controller. All these functions can perform remotely on the PC or Mac by Dante Controller Software.

MODELDante 615 POE

Input Interface RJ-45
Audio Input Signal Dante™ | Balanced amplified signal
Cable Cat-5 or above
Output Power 15W
Transmission Rate 100M/1000M bps
Frequency Range 80Hz - 18kHz
Sensitivity 91dB 1w/1m
Sound Pressure Level 106dB (peak)
Total Harmonic Distortion <0.30%
Signal to Noise Ratio >100dB
Noise Floor <200uV
System Efficiency >70%
Enclosure ABS
Operation Temperature -10 to 50 Degree
Color RAL-9010
Dimension Dia 200 x 90mm
Net Weight 0.95kg
