The Wall Mounted Speakers generally meet better sound without
Take up the valuable floor space that floor
Be placed anywhere for commercial applications such as the sound reproduction
In areas such as schools, conference rooms, shopping malls, restaurants, factories, gymnasiums etc.

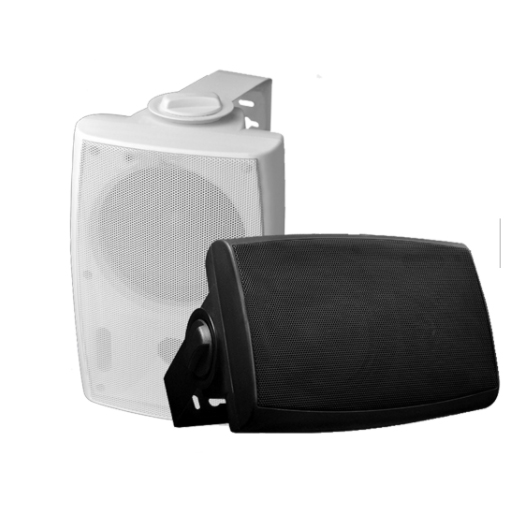

※ 2-way wall mount speaker
※ Built-in 100V transformer (This technique of line input 100V reduces signal losses
On a longer distance and allows easy parallel connection of multiple loudspeakers.
※ Also 8 Ohm input is available without transformer.
※ ABS baffle, metal grille, metal bracket
※ Fast installation by U shaped stainless and rotatable mounting bracket could be adjusted at reques
|
Model |
WMS-420SW |
WMS-530SW |
WMS-640SW |
|
Rated Power (W) |
20W |
30W |
40W |
|
Line Voltage (V) |
70V-100V |
70V-100V |
70V-100V |
|
Freq.Resp.(HZ) |
100Hz-20KHz |
100Hz-20KHz |
70Hz-20KHz |
|
Sensitivity (1w,1n) |
89±3 dB |
87±3 dB |
88±3 dB |
|
Dimensions (mm) |
215*170*150 mm |
242*182*162mm |
284*215*190mm |
|
Material |
ABS enclosure, metal grille, metal bracket; Black and White available |
||
|
Weight |
2.2kg |
2.5kg |
3.5kg |
|
Speaker Unit |
4"*1+1.5"*1 |
5"*1+1.5"*1 |
6.5"*1+1.5"*1 |
