BASIC INFO
Products Description
|
Brand Name
|
OE200
|
|||
|
Input Voltage
|
DC30V 5A
|
|||
|
Frequency Response
|
60Hz~20KHz
|
|||
|
SNR
|
75dB
|
|||
|
THD
|
<0.1%
|
|||
|
Channel
|
2.0CH
|
|||
|
Type
|
Class D
|
|||
|
Output Power
|
2x50W (8ohm), 2x100w (4ohm)
|
|||
|
Input Interface
|
1xCoaxial (S/PDIF coaxial connector)
1xOptical (S/PDIF optical connector) 1xLine 1 (3.5mm jack connector) 1xLine 2 (3.5mm jack connector) 1xHDMI (HDMI female connector) 1xBalanced (5-pin terminal block connector) |
|||
|
Mic Input
|
1x3.5mm jack connector
|
|||
|
Output Interface
|
1x4-pin pluggable terminal block
1x3.5mm jack connector |
|||
|
Control
|
Front Panel Button, RS485 Control, IR
|
|||
|
Case Material
|
Aluminum Alloy
|
|||
|
Operation Temperature
|
0° to 40° (32°to 104°F)
|
|||
|
Storage Temperature
|
-20° to +70° (-4°to 158°F)
|
|||
|
Humidity
|
10%-90% RHL non-condensing
|
|||
|
Dimension
|
155x103x95 (MM)
|
|||
|
Weight
|
0.55Kgs
|
|||
|
Amplifier Application
|
Classroom, Conference Room, Boardroom, Hotel, Home, Outdoor Etc.
|
|||
|

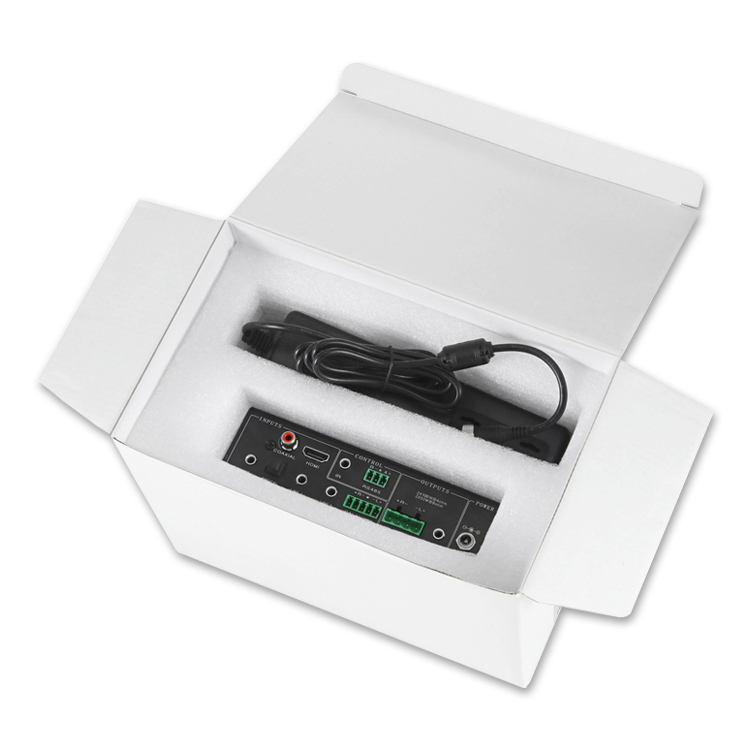

Packing List
|
1xOE200 Power Amplifier
1xPower Supply 2xMounting Ears 1xUser Manual |
|||
