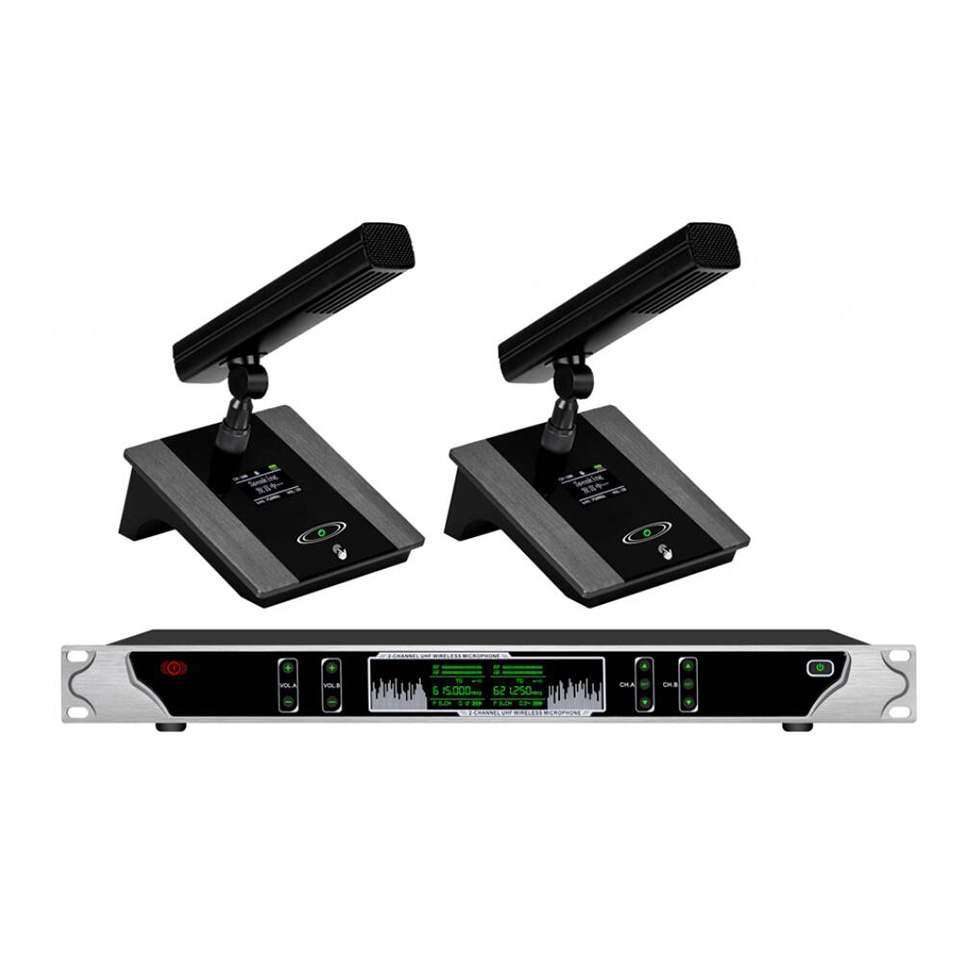

U wireless touch Conference one for two

BASIC INFO

Product features:


1. UHF ultra-high frequency band, less interference than the traditional VHF band, more reliable transmission, two channels receive signal, each channel has 100 channels to choose, IR infrared automatic frequency matching function; suitable for all kinds of meetings and speech occasions.


2. The stable PLL Synthesis Technology is used to improve the performance stability of the whole machine;


3. UHF band transmission signal, frequency range: 600mhz-700mhz, LCD screen displays working channel, working frequency point, received signal and audio signal


4. High quality straw, strong pickup distance, high fidelity single directional capacitance microphone, sound restoration, high definition, low noise;


5. The conference microphone is equipped with a red light ring to indicate the working status of the conference microphone.


6. It has 8-level RF display, 8-level AF audio signal level display, frequency and channel synchronous display, transmitter and receiver have battery status display, remind to change the battery when the power is low, and mute when there is no power, effectively prevent the noise when there is no power;


7. High sensitivity touch button is used to turn on the microphone immediately


System index
Frequency range UHF 600MHz 700MHz
Oscillation mode. PLL frequency synthesizer (PLL)
Frequency stability: ± 0.001%
Modulation mode: FM
SNR: > 60dB
Distortion: < 0.5% @ 1kHz
Sensitivity: 1.2/uv @ s / N = 12dB
Power supply: DC: 12V ~ 17V
Frequency response: 40Hz ~ 20KHz
Effective distance: 60m in open area
Mute mode mute and voice code locking circuit
Microphone index
Frequency range UHF 500MHz 900MHz
Polarity mode: single directivity
Type: capacitive
Frequency stability: ± 0.001%
Maximum frequency deviation: ± 30kh
SNR: > 60dB
Dynamic range: ≥ 100dB
Adjacent frequency interference ratio: > 80dB
Microphone sensitivity: 43 ± 3dB@1KHz
Battery: AA 1.5V No.5 three batteries (1.5V AA * 3)
Power consumption of microphone: 100mA
Weight: 0.32kg (handheld), 0.04kg (collar clip); weight without battery
Dimensions: length 250mm × diameter 35mm (handheld), width 65mm × height 108mm × thickness 22mm (collar clip)
Receiver index
Function display mode: LCD display (2-way display)
Working temperature: - 10 ° C + 60 ° C (working temperature of battery is not promised)
Audio output: 0 400mV for balanced XLR connector and 0 300mV for trs6.35mm connector
Audio output level: ± 40KHz (when frequency offset is 1K signal, load) balance 600 Ω
Load: 13dbv, unbalanced 600 Ω load - 2dbv
Output impedance: 4-way balanced 200 Ω; 1-way combined unbalanced 600 Ω
Balanced output: 1-pin ground wire (output line shielding layer), 2-pin audio, 3-pin audio
Balanced output: plug type balanced XLR connector
Unbalanced type: trs6.35mm joint
Size: (LxWxH) 420mmx145mmx44mm
Weight: 4.5 kg, excluding antenna weight
