2ch & 4ch Active WiFi Speakers

BASIC INFO

Description & Feature:


Wireless In Ceiling Wifi Speakers are Wifi based audio solutions with Class D amplifier as following:
Model D230WF with 2CH amplifier 2*30W: 1 Two-channel-amplified speaker and 1 passive speakers.
Model D430WF with 4CH amplifier 4*30W: 1 Four-channel-amplified speaker and 3 passive speakers.


Compatible for Android,iOS with APP controlWiFi audio for independent control of music content by multiple users via APPStreaming music directly from phone.Featured RJ45 network port for wired connectivity is a backup for the point where the WiFi signal is weaker and one LINE input for local audio source.

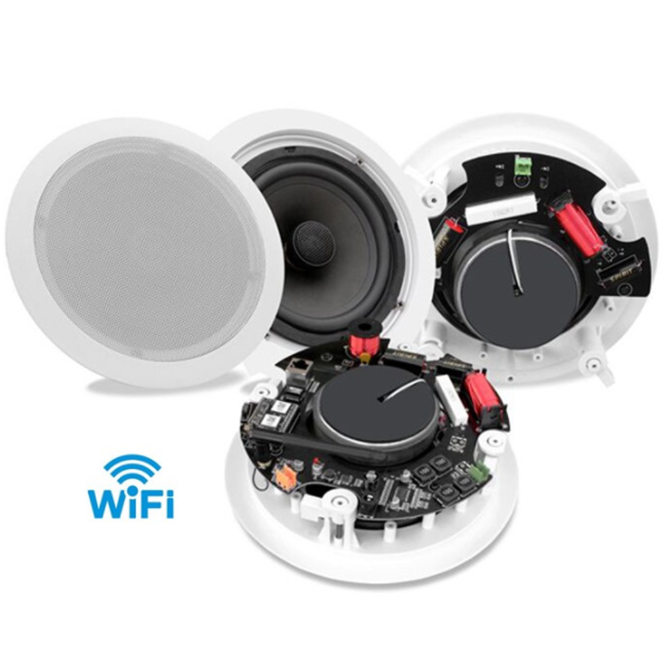

These speakers utilize coaxial ceiling speaker system of 6" PP cone woofer and 1" titanium dome tweeter,supported by a professional 2-way crossover,all these outstanding features make the loudspaekers deliver realistic accurate low and reproduce high frequencies with extreme accuracy to allow for superior sound and clear intelligibility in a variety of ceiling environments.
Ideal for use in your living room,bedroom,hotel room,entertainment area,office,workspace,show room,restaurant etc.


- Built-in digital Class D amplifier with two options:
Model D230WF with 2CH amplifier 2*30W
Model D430WF with 4CH amplifier 4*30W
- Built-in WiFi wireless music streaming receiver.
- Connect with your smart device via the free app.
- Support AIRPLQY/D LAN/Q PLAY.
- One RJ45 port available for the point where the WiFi signal is weaker.
- One LINE input for local audio source.
- 2-way coaxial system containing one 6" woofer and one 1" tweeter.
-DC 12V power supply with AC adapter.
-Flush-mount dog ears installation.
- Attractive color ABS resin finish with white metal grille suits any decor.

Specifications:
Model D230WF D430WF
Rated Power 2*30W@8Ω 4*30W@8Ω
Amplifier Channel 2 Channel 4 Channel
Amplifier Type Digital Class D
Frequency Response 80Hz-20KHz(±3dB)
THD <0.05% at 1kHz,1/3 rated power
S/N >70 dB
Speaker Driver Woofer 6"*1 + tweeter 1"*1
Power Consumption 50W 100W
Installation In-ceiling
Material ABS enclosure,metal clamps
Power Supply DC12V
Dimension Φ230*155mm
Cutting Hole Φ200mm
Net Weight 3.20kg (1+1) 5.80kg (1+3)
