BASIC INFO
Features:

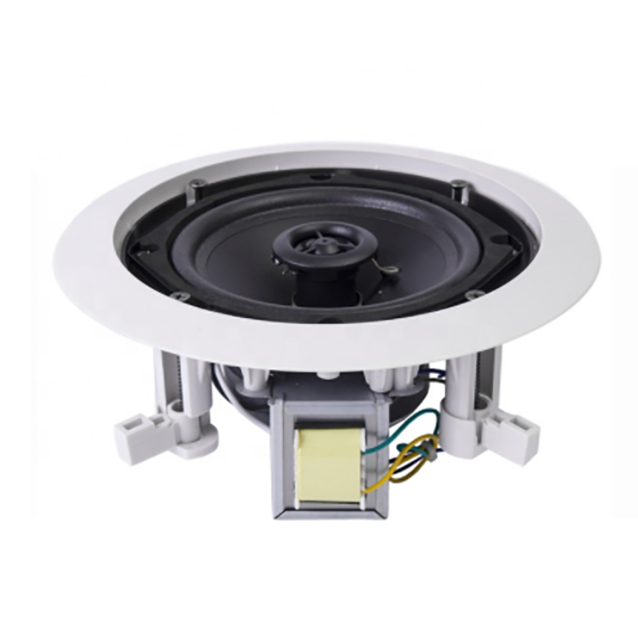

* PP Woofer Two-way hifi sound with tweeter and woofer .

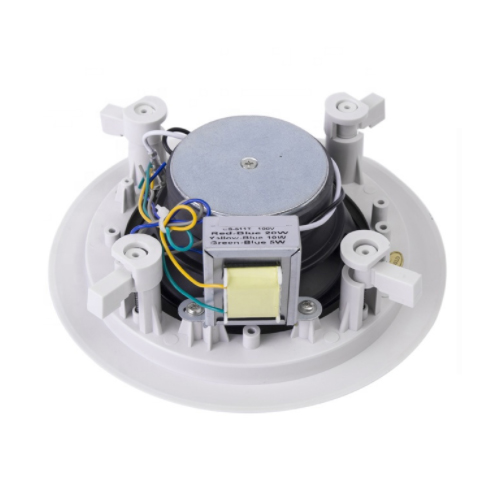

* Built -in 70v/100v transformer in-ceiling type loudspeaker
* Available Size : 5" 20w,6" 30w,8" 40w
* It's ideal choice for industrial and commercial applications in hotel , school , building office ,factory ,supermarket where background music and paging is needed.
Specification:
|
Model
|
CS-20T
|
CS30T
|
CS-40T
|
|
RMS Power
|
20w
|
30w
|
40w
|
|
Line Input
|
70v/100v
|
70v/100v
|
70v/100v
|
|
Speaker Unit
|
5"X1,1/2"X1
|
6"X1,1/2"X1
|
8"X1,1/2"X1
|
|
Sensitivity
|
88dB
|
88dB
|
88dB
|
|
Freq.Resp
|
100-20KHZ
|
90-20KHZ
|
50-20KHZ
|
|
Dimension
|
203*80mm
|
230*90mm
|
270*105mm
|
|
Hole for Mounting
|
Ø170mm
|
Ø200mm
|
Ø240mm
|
|
Net Weight
|
1.25kg
|
1.6kg
|
2.1kg
|
|
Material
|
ABS
|
ABS
|
ABS
|
