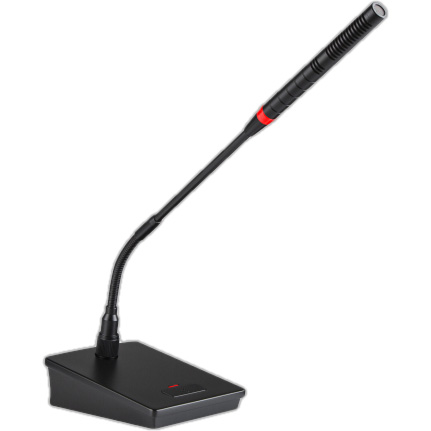

Mode :701A

Product features:

1. Full digital control design

2. The microphone adopts all metal shell design, which is more stable and durable.

3. Voice control power off function: the microphone will automatically turn off 30 seconds after the end of the speech

4. The wheat head is equipped with a red light ring to indicate the working state of the conference microphone.

5. The base has a red luminous ring, which is on when it is opened.

6. The unit is a passive device, powered by the system host, and the input voltage is DC24 V, which belongs to the safe range

7. The number of chairman units in the system is unlimited and can be placed at any position in the circuit

8. The chairman priority control button can be set to permanently terminate or suspend the speech status of all speakers

9. The unit has a 2 m * 1.5 m 8p connection line for the "t" type one-way connection of the system, and the extension line can be customized according to the actual situation of the venue.

10. The unit microphone pole is separated from the base, and is fixed in a spiral way to eliminate noise, which is more protective for transportation.

Technical parameters:

Input and output: 8P-DIN t-wire

Input: cardioid directional electret

Sensitivity: - 46 dbv / PA

Frequency response: 20Hz ~ 20KHz

Input impedance: 2K?

Directivity: 0 ° / 180 ° > 20 dB (1 kHz)

Equivalent noise: 20 DBA (SPL)

Maximum sound pressure level of microphone: 125 dB (THD < 3%)

SNR: > 80dB

Channel crosstalk: > 80dB

Total harmonic distortion: < 0.05%

Color: Black

Installation mode: Desktop“
