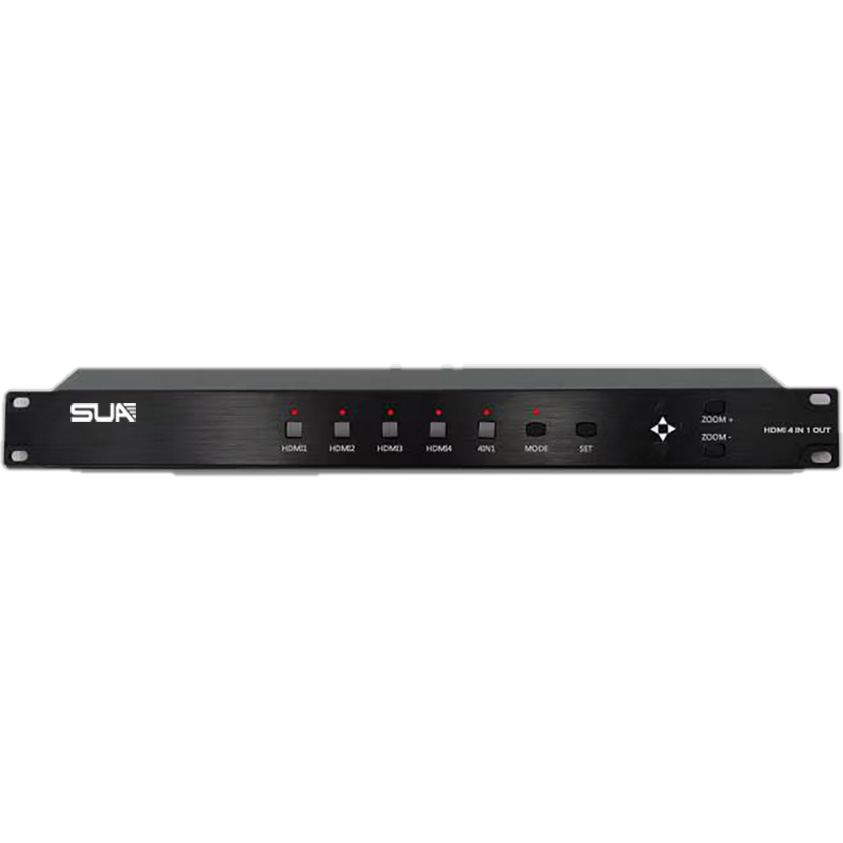

MODE:HD4001

Product features:

1. With LK series digital conference host control, HD image quality seamless switching, single picture high-speed switching without black screen, support 1080p 60Hz (downward compatible)

2. The same display screen can be equally divided into four pictures at the same time. In the four picture mode, only tracking and no picture switching are allowed

3. Four channels of HDMI audio signal are transmitted synchronously. When the picture is switched, the corresponding audio is switched at the same time

4. Support 10 meters HDMI line input, 10 meters HDMI line output, beyond the length can increase the extender

5. With manual switching and RS-232 control code port switching mode, it can be connected to central control or digital conference host control

Technical parameters:

HDMI compatible: HDMI 1.4b meets dvi1.0

HDCP compatible: HDCP 1.4

Video bandwidth: 6.75gbps

Color depth: 10bit, 12 bit

Resolution: 1080p60hz, downward compatible

Input: 4xhdmi type A (19 pin female)

Output: 1 HDMI type A (19 pin female)

Electrostatic protection: human body model-8kv (air gap discharge) & 4KV (contact discharge)

HDMI audio format: lpcm 2 / 5.1 / 7.1ch, Dolby Digital, DTS 5.1, Dolby Digital +, Dolby turehd, DTS-HD master audio, Dolby atmos, DTS:X.

Power supply: power input: AC100-240V 50 / 60Hz power output: DC5V 2A“
