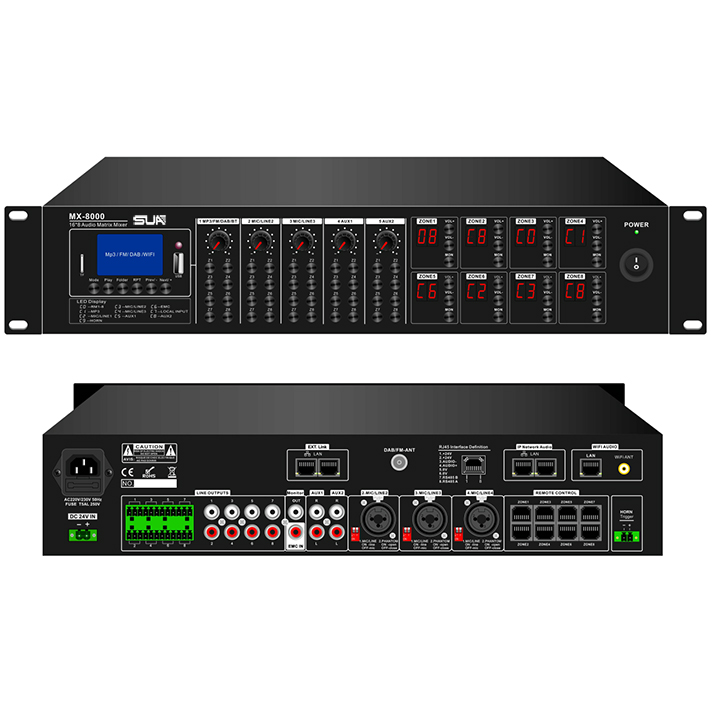

16*8matrix mixer system

  • Category：
Inquiry
BASIC INFO
Model :MT1608
Feature
The matrix  mixer is highly integrated, which is cater for multi-zone paging and multi-sources selection. It is complete solution for multi-zone, multi-functional venues like entertainment places, large-scale hotel, sports centers, shopping mall, airport etc. It is  with up to 8 music source input, 8 remote control panels, 8 remote  microphone , all of these input could be freely linked to different 8 zone output simultaneously.
  1. 16 audio input, distributed to 8 speaker zones through the audio matrix.
  2. The digital tubes display the status of each zone
  3. DAB/DAB+/MP3/FM/Bluetooth, 3 mic/line, aux input & EMC mute input with priority.
  4. 8channel  matrix mixer  controller with audio sources, zone volume control .
  5. 8 remote control by CAT5 cable up to 200 meters to select program and control volume.
  6. 8 remote paging microphone by CAT5 cable up to 200 meters communication.
  7. Different 8 zone of different music program and different volume output.
  8. 8 Zone speaker outputs of 100V or 4/8 Ohms speakers.
  9. 3mic/line switchable inputs of balanced XLR with 48V phantom power.
  10. 1 aux input and an integral DAB/DAB+ USB/SD/FM player and Bluetooth can be matrix switched to any of the 8zones independently.
  11. Mic 1 channel has a variable override and each microphone input has switchable phantom power.
  12. 8zone remote paging microphone for paging & announcement system.
  13. 100V or 8 Ohms operation for PA system and hi-fi both sound system.
  14. 8independent output zones for multiple room sound system.
  15. Each channel is provided with individual bass/treble control and volume control. Master volume and Monitor volume control is provided as well as.
  16. 3 kinds of pre-recorded audio including alert, evacuation message and alarm are provided.
  17. EMC port is for external voice alarm message.
  18. 5 levels of priority from high to low: Mic 1, fire alarm, remote paging console, remote control panel and background music.
  19. 24V mute contacts to integrate with fire alarm system.
  20. AC230V and 24V DC both operation system.
