BASIC INFO

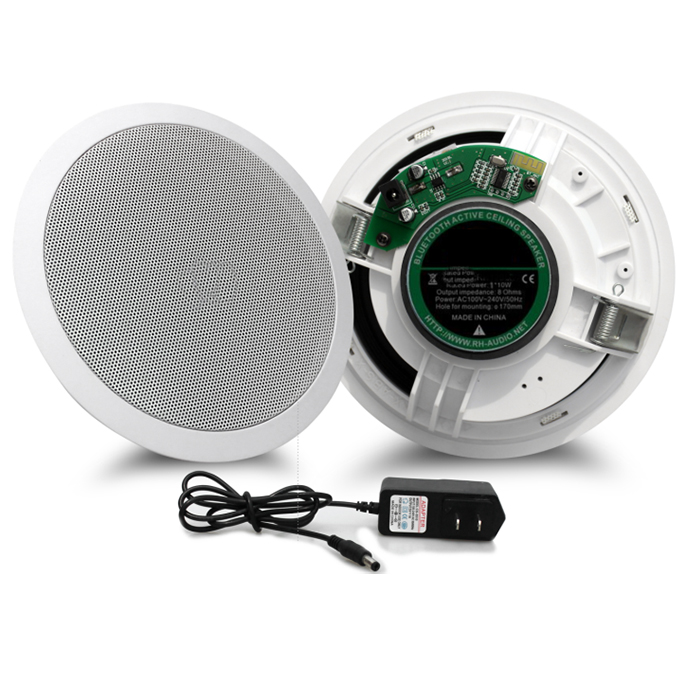

Active Blue tooth Ceiling Speaker With Built in Amplifier
Bluetooth Active Ceiling Speakers are designed with digital Class D amplifier,and built-in Bluetooth
receiver.It is an ideal economy choice for industrial and commercial applications in hotels,shops,home rooms
and where background music is needed.
receiver.It is an ideal economy choice for industrial and commercial applications in hotels,shops,home rooms
and where background music is needed.
Built-in digital Class D amplifier with three options:
Model D1B with 1CH amplifier 1*10W
Model D2B with 2CH amplifier 2*10W
Model D34B with 4CH amplifier 4*10W
Built-in Bluetooth for wireless music streaming – works with almost all Bluetooth devices
( iphones, Androids, smart phones, ipads, tablets, etc).
Support for Bluetooth protocols: HFPV1.5, A2DPV1.2,AVRCPV1.4,HSP1.2, GAVDP1.2, IOP
DC 12V power supply with AC adapter.
Full-range 6" dual-cone dynamic speaker diver.
Frame-mounted spring-loaded clamps provide secure, low-noise connections and easy installation.
Attractive color ABS resin finish with white grille suits any decor.
Specification
Model | D1BL |
Rated Power | 1*10W |
Amplifier Channel | 1CH |
Amplifier Type | Digital Class D |
Frequency Response | 120Hz-15KHz(±3dB) |
THD | <0.05% at 1kHz,1/3 rated power |
S/N | >70 dB |
Speaker Unit | 6"*1 |
Power Consumption | 15W |
Installation | In-celing |
Material | ABS enclosure,metal clamps |
Power Supply | DC12V |
Dimension | Φ188*76 |
Cutting Hole | Φ170 |
Net Weight | 0.95kg (1) |
