BASIC INFO
Product Description

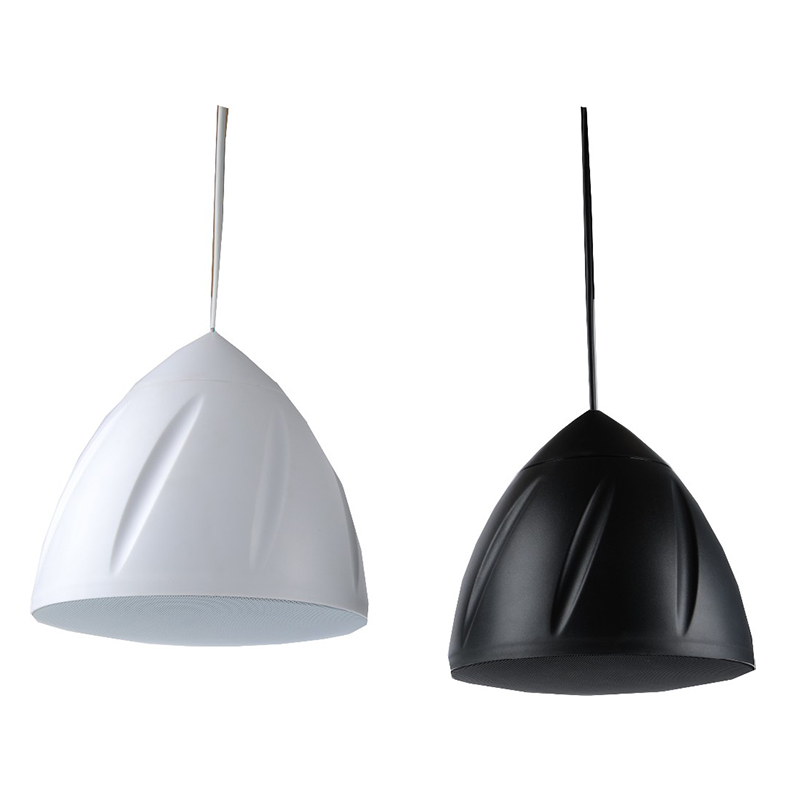

this pendant speaker for ceiling mounted, we has two size, 40W (LU-B40W) & 50W(LU-B50W)
It is very suitable for public address just like hall, office, meeting room...etc.
|
Woofer
|
6.5 inch (165 mm) Kevlar® R/ring mode decoupled cloth surround & steel basket
|
|
Tweeter
|
0.98 inch (25 mm) titanium dome, horn loaded
|
|
Crossover Frequency
|
2.5 kHz
|
|
Impedance
|
8 Ohms nominal with transformer set to “LoZ”
|
|
Transformer Taps
|
3.75W/7.5W/15W/30W/60W at 70V
|
|
7.5W/15W/30W/60W at 100V
|
|
|
Frequency Response
|
50 Hz to 20 kHz (±3 dB)
|
|
Frequency Range
|
40 Hz to 20 kHz (-10 dB)
|
|
Power Handling
|
125 Watts program (8 Ohms)
|
|
Sensitivity
|
88.5 dB @ 1W/1m
|
|
Coverage
|
100° conical (nominal)
|
|
Connections
|
Maximum Wire Size: 12 AWG
Speaker input with parallel pass-thru; Maximum Wire Size: 12 AWG |
|
Controls
|
Used to select 70/100V tap or 8 Ohms (bypass)
Transformer Tap: Recessed screwdriver-adjustable rotary switch on baffle; Used to select 70/100V tap or 8 Ohms (bypass) |
|
Environmental
|
Humidity: 5% to 95% RH (non-condensing)
Temperature :-2° to 120°F (-19° to 49°C) |
|
Dimensions
|
Width: 9.92 in (252 mm) diameter
Height: 9.53 in (242mm) |
|
Weight
|
9.8 lb (4.5 kg)
|
