8 inch Coaxial Two Way Ceiling Speaker

BASIC INFO

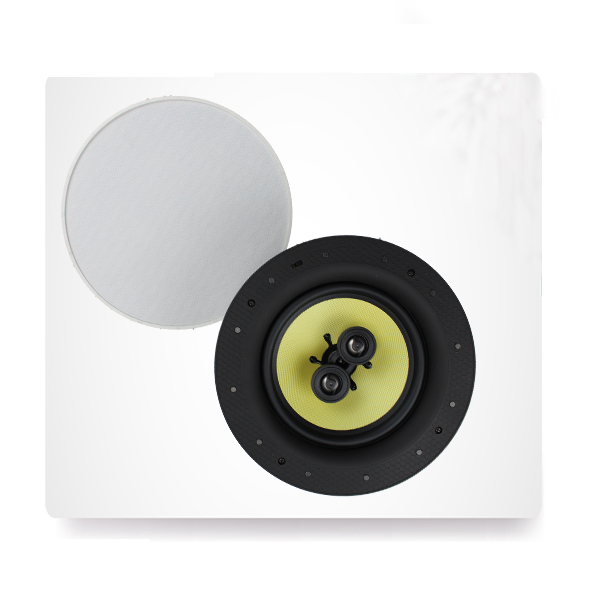

Indoor 8 inch Coaxial Two Way Ceiling Speaker

LU-80C

* 8" 2-way ceiling speaker

* Frequency Response: 50Hz-20 KHz

* RMS Power: 80 watts

* Impedance: 4+4 ohms

* Sensitivity (1w/1m):90dB

* Drive Unit Complement

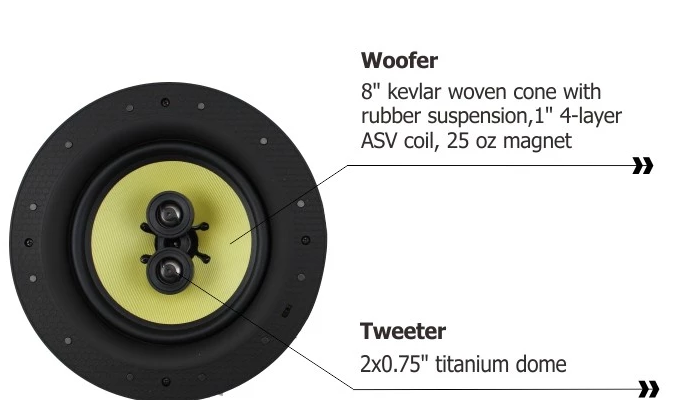

* Woofer:8" (203mm) Kevlar Woven cone with Rubber suspension,1.2"(30mm) 4-layer ASV coil,30 OZ magnet

* Tweeter:2*1.2" (30mm) titanium dome

* Tweeter equalizer: +3dB/-3dB

* Cutout Dimensions:φ255 mm

* Overall Dimensions:φ277*105mm

Frequency Response:	50 Hz-20 KHz
RMS Power:	80 watts
Impedance:	4+4 ohms
Sensitivity(1w/1m):	90dB
Woofer:	8" (203mm) Kevlar Woven cone with rubber suspension,1"(25mm) 4-layer ASV coil,30 OZ magnet
Tweeter:	2*1.2" (30mm) Titanium Dome
Tweeter equalizer:	+3dB/-3dB
Cutout Dimensions:	φ255 mm
Overall Dimensions:	φ227*105mm
