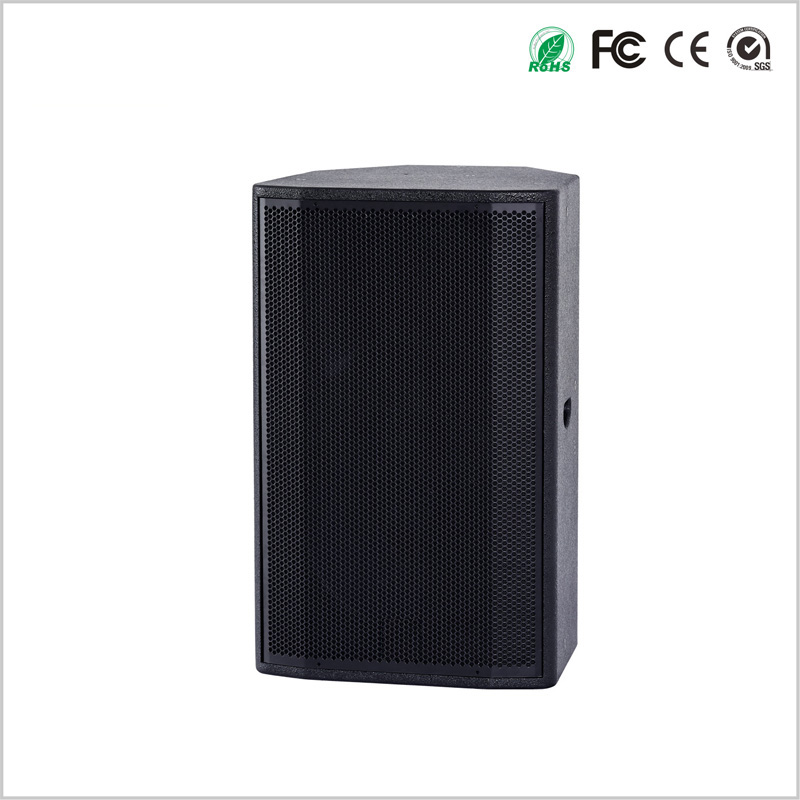

2 Way Single 15 Inch Professional Speaker

  • Product Item:DV15/DV12
  • Category:Products
BASIC INFO
Description

Combined with the characteristics of the bar elements, the sound field design through the software model uses a 120-degree

wide-type waveguide to make the sound more evenly balanced. The box design uses a circular air-conducting method to make

the low-frequency more powerful and elastic, high-density paper cone. Make the sound explosive and high speed, so that the

hearing will not be tired due to the long time. In particular, the domestic custom-made high-quality speaker unit is the core component,

with smooth frequency response and precise coverage angle. The sound is crystal clear and transparent, and the space and texture

are excel lent. The crossover designed by LMS, SmaartLive and other software uses high-purity OFC oxygen-free copper inductor

wire, which minimizes the influence of the wire itself and greatly improves the power carrying capacity. Using special MKP capacitor,

the loss is very low and the internal resistance is very small. The high-power aluminum shell resistor of the enthusiast grade is adopted,

the heat dissipation speed is fast, the resistance value is accurate, and the parameter variation is smal l, which ensures excel lent

stability of sound reproduction. The frequency divider uses a fever-level scaffolding welding process to provide a powerful guarantee

for high-qual ity playback of the speaker system!


Specification

Model DV15 DV12
System 2-WAY FULL RANGE 2-WAY FULL RANGE
Frequency response 55Hz-18KHz 55Hz-20KHz
Driver LF:15"×1 LF:12"×1
HF:3"×1 MF :12"×1 HF:1.73"×1
Nomina limpedance 8Ohms 8 Ohms
System sensitivity 101dB 98dB
Rated power 600W 400W
Peak power 2400W 1600W
Maximum SPL 139dB 129dB
Diffusion  Angle 120°×50° 80°×80°
Crossover  mode Internal Crossover Internal Crossover
Installation Multil-point suspension Multil-point suspension
Net weight 35KG 23KG
Size(mm) 430W×450D×920H 330W×450D×920H
Package size(mm) 522w×540d×1012h 422w×540d×1012h
