BASIC INFO
Description

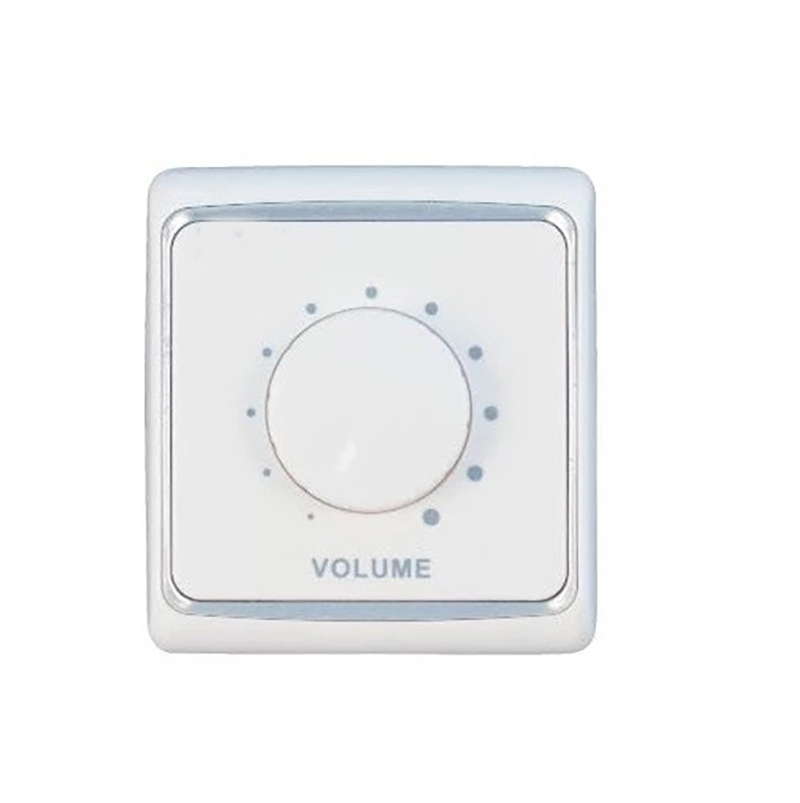

50W squarerotary volume control switch
this Volume control is very easy to use and beautiful.
it can option 5W 10W 30W 50W rated power and with 47.5mm install depth.
what's more its dimension is 86x93x66.very suitable to Public address or family music volumecontrol.
|
Technical data
|
LU-T55
|
LU-T10W
|
LU-T30W
|
LU-T50W
|
|
Rated power
|
5 W
|
10 W
|
30 W
|
50 W
|
|
Component set
|
Rotary switch with stopper,10 volume levels,1 off positions
|
|||
|
Install Depth mm
|
42.5
|
42.5
|
47.5
|
47.5
|
|
Dimension (W*H*D)mm
|
86x93x66
|
86x93x66
|
86x93x66
|
86x93x71
|
|
Colour
|
White (RAL 9010)
|
|||
