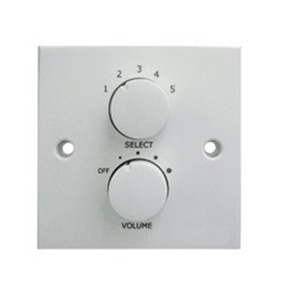

100V Volume Control with Channel Selector

VC-S6 (6W)

VC-S30 (30W)

VC-S60 (60W)

VC-S120 (120W)

Features:

PA (Public address) system use volume control.

Background music system use attenuator with 5 programs selector.

The public address system volume controller is used to adjust the loudspeaker output in the room and select different output programs.

The PA system volume controller is used to keep same output level for one same speaker line, because the end the speaker line signal loss is rather big, so its outputs is less, thus volume controller is added to the front of the line to lower the speaker output so as to keep the similar ambient output level for the all of the speaker in the same line.

High level white UV-protected ABS material to integrate together with the white wall and architecture design.

Built-in transformer to control the PA 100V line loudspeakers.

With 4 levels of volume attenuator and one position of off.

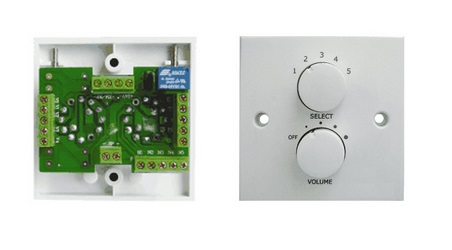

Wall plate and front panel are separated fixed together.

Surface wall mount or in-wall mounting box shall be purchased separated.

Specification:
