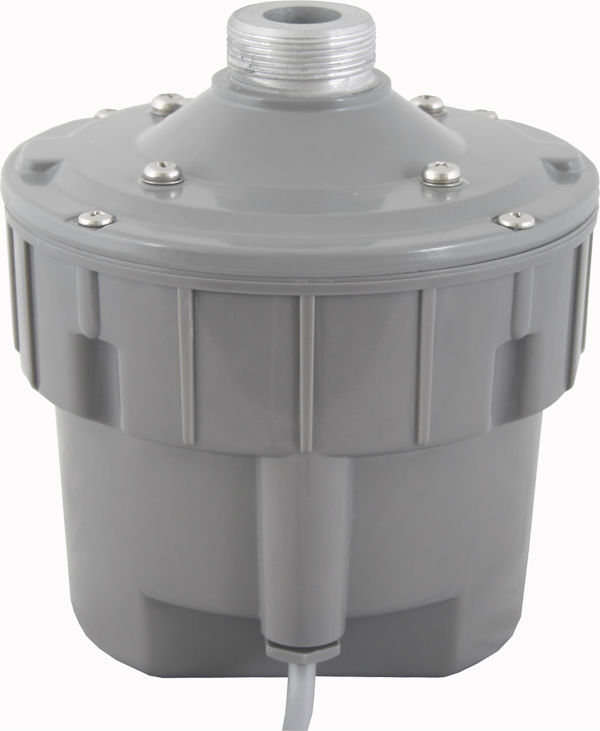

Horn Speaker Driver Unit

BASIC INFO

Description

This workhorse driver provides efficient, articulate sound and is designed to survive the harshest environment. The cast aluminum faceplate, gasketed plastic rear cover, and stainless steel hardware ensure long-term reliability. A phenolic-impregnated cloth diaphragm will resist years of continuous stress and multiple attenuation tappings on the enclosed transformer permit easy adjustment of wattage taps, plus 16 ohm bypass . Standard 1-3/8"-18 threaded mounting.


Please consider the following features:

  • Maximum 75 watts RMS power handling capacity
  • Durable phenolic-impregnated diaphragm
  • Low distortion, high output
  • Multiple transformer taps match driver to any system
  • Standard 1-3/8"-18 threaded mounting
Specifications/Model Name LU-D75T LU-D50T LU-D30T
Load Rating Power(Watts) 75 50 30
Nominal impedance 16-ohms
Frequency Respone(Hz) 300-6K
SPL(dB@1W/M) 107 105
Input Method 100V 70V 16-Ohms
Transformer Tapping(@100V)

75 50 20W(100V)

80 40 20 10(70V)

100 50 25W(100V)

100 50 25 12.5W(70V)

30 15 10W(100V)

30 5 7.5 5W(70V)

Horn Diameter(mm) 138
Total Length(mm) 145
Materials,Colour Aluminium,RAL7042
Protection Level IP56
