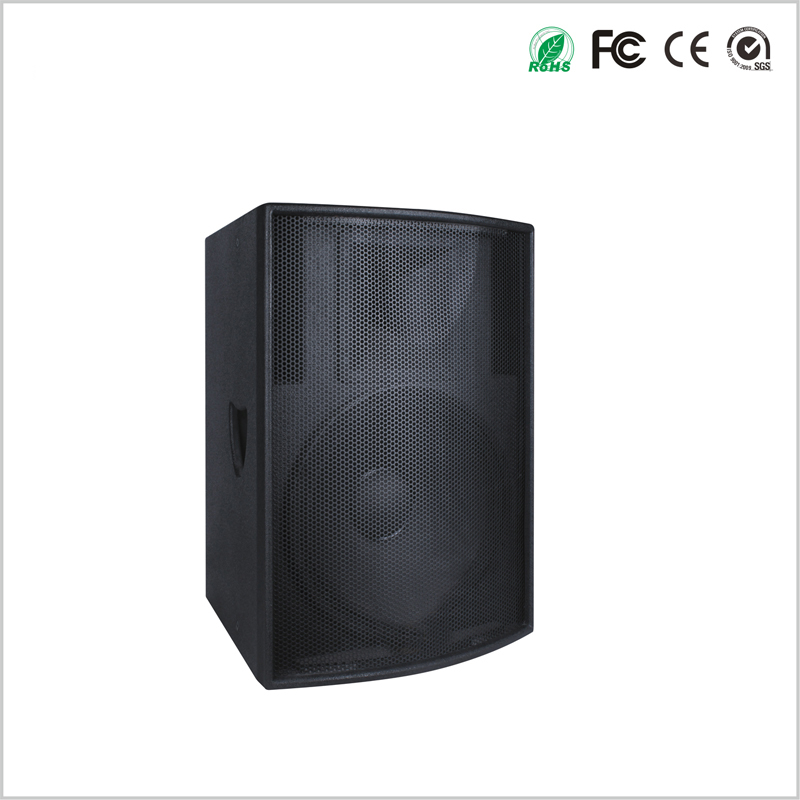

2 Way Single 15 Inch Professional Speaker

BASIC INFO
Description

◆The domestic high-qual ity unit is used as the core component, with smooth frequency response and precise coverage angle. The

sound is crystal clear and transparent, and the space and texture are excel lent.

◆A new generation of cost-effective professional speaker system, designed for all kinds of sound reinforcement places such as slow

rocking bar. It is known for its excel lent conversion characteristics such as high conversion efficiency, strong penetration level,

dynamic and powerful. Its constant directivity horn and neodymium treble design have almost the same sound field coverage as the

woofer. The designed matching high-frequency horn and the coverage characteristics of the woofer achieve a smooth transition,

providing a wide sound coverage angle, natural and open sound. It has a high conversion efficiency, making it easier to match the

power amplifier, and the drive problem is solved. And through the LMS, SmaartLive and other software to design a rigorous crossover

circuit, with excellent signal crossover processing performance, and designed with high-pitched dynamic protection circuit, can make

the speaker effectively protected under the conditions of continuous high output.


Specification

Model F15 F12 F10
System 2-WAY FULL RANGE 2-WAY FULL RANGE 2-WAY FULL RANGE
Frequency response 43Hz-18KHz 50Hz-18KHz 57Hz-18KHz
Driver LF:15”×1,HF:1.73"×1 LF:12”×1,HF:1.73"×1 LF:10”×1,HF:1.34"×1
Rated Impedance 8 Ohms 8 Ohms 8 Ohms
System sensitivity 98dB 97dB 95dB
Rated power 450W 300W 200W
Peak power 1800W 1200W 800W
Maximum SPL 131dB 128dB 124dB
Diffusion angle horizon80°,verticality50° horizon80°,verticality50° horizon80°,verticality50°
Crossover  mode Inside  crossover Inside  crossover Inside  crossover
Suspension Multi-point Suspension Multi-point Suspension Multi-point Suspension
Net weight 26.5KG 20kg 15kg
Product Size(mm) 475W×445D×685H 396W×368D×575H 351W×320D×533H
Package size(mm) 530W×505D×750H 460W×425D×635H 390W×360D×610H
