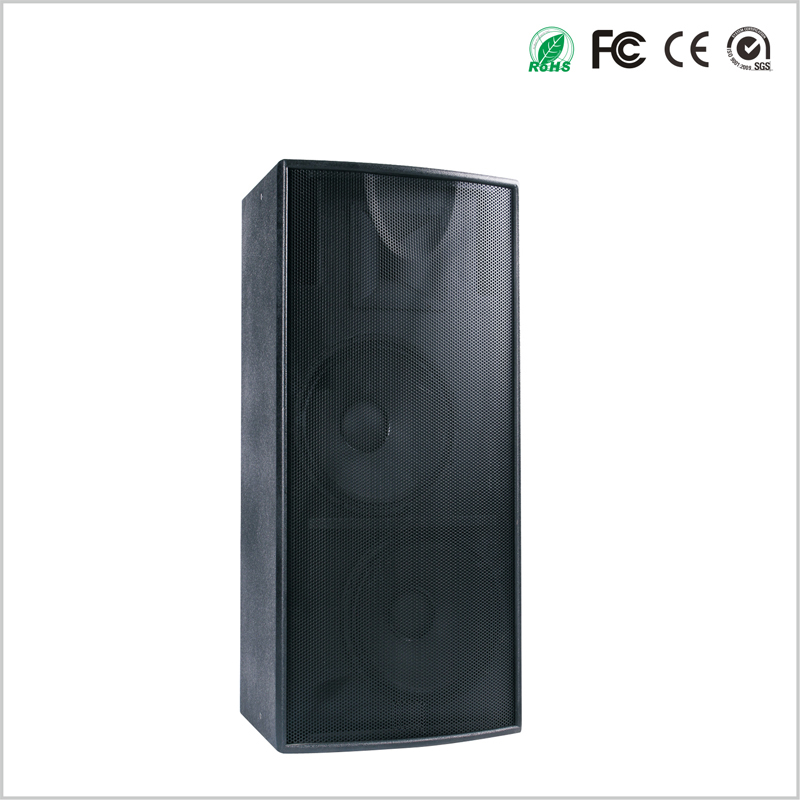

2 Way Dual 15 Inch Professional Speaker

BASIC INFO

Description

The domestic high-qual ity unit is used as the core component, with smooth frequency response and precise coverage angle. The

sound is crystal clear and transparent, and the space and texture are excel lent.

A new generation of cost-effective professional speaker system, designed for all kinds of sound reinforcement places such as slow

rocking bar. It is known for its excel lent conversion characteristics such as high conversion efficiency, strong penetration level,

dynamic and powerful. Its constant directivity horn and neodymium treble design have almost the same sound field coverage as the

woofer. The designed matching high-frequency horn and the coverage characteristics of the woofer achieve a smooth transition,

providing a wide sound coverage angle, natural and open sound. It has a high conversion efficiency, making it easier to match the

power amplifier, and the drive problem is solved. And through the LMS, SmaartLive and other software to design a rigorous crossover

circuit, with excellent signal crossover processing performance, and designed with high-pitched dynamic protection circuit, can make

the speaker effectively protected under the conditions of continuous high output.


Specification

Model F215
System 2-WAY FULL RANGE
Frequency response 35Hz-18KHz
Driver LF:15”×2,HF:1.73"×1
Rated Impedance 4 Ohms
System sensitivity 101dB
Rated power 800W
Peak power 3200W
Maximum SPL 136dB
Diffusion angle horizon80°,verticality50°
Crossover  mode Inside  crossover
Suspension Multi-point Suspension
Net weight 52KG
Product Size(mm) 560W×500D×1216H
Package size(mm) 625W×560D×1300H
