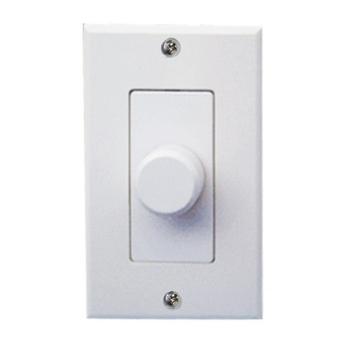

100V Volume Controller

Category：Volume Controller

BASIC INFO

VE-C6 (6W),VE-C30 (30W),VE-C60 (60W),VE-C120 (120W)

Features:

PA (Public address) system use volume controller.

Background music system use attenuator.

Power control of 6W, 30W, 60W and 120W.

Integrate with transformer technology of compact size.

The volume controller is used to adjust the loudspeaker output in the room.

The volume controller is used to keep same output level for one same speaker line, because the end the speaker line signal loss is rather big, so its outputs is less, thus volume controller is added to the front of the line to lower the speaker output so as to keep the similar ambient output level for the all of the speaker in the same line.

High level white UV-protected ABS material to integrate together with the white wall and architecture design.

Built-in transformer to control the PA 100V line loudspeakers.

With 10 levels of volume attenuator and one position of off.

Surface wall mount or in-wall mounting box shall be purchased separated.

With 24V relay is optional.

Specification:

Model	VE-C6	VE-C30	VE-C60	VE-C120
Description	100V Volume Controller
Rated Output	6W	30W	60W	120W
Line Input	100V or 70V
Volume Step	10 steps plus off
Attenuation Per Step	3dB
Total Attenuation	33dB
Material	UV-protected ABS in white
Mounting Way	Surface mount or in-wall mount
Dimension	115(W)×70(D)×54(H)mm
