Model

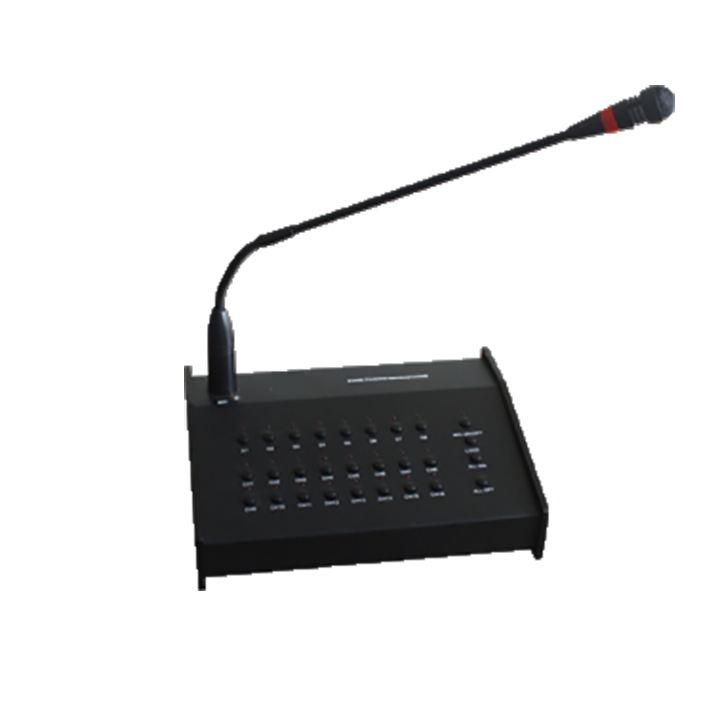

PA16RM

Power Supply

24V DC

Mic. Input

MIC:600 ohms(Ω) 5mV,unbalanced

Line Output

LINE:10k ohms(Ω) 10V,unbalanced

Fre. Resp.

MIC,LINE:60 Hz ~ 16k Hz (± 1 dB)

THD

<0.5% at 1kHz

Current Consumption

<0.25mA (each keyboard is less than 0.03mA)

Sensitivity

5mV

Rated Output Level

5V (parallel)

SNR

>70dB

Distortion

<1% (Rated Output), 1KHz

Frequency

100Hz~16KHz

Output Impedance

100Ω

Operation Temp

+5℃- 40℃

Storage Temp

-20℃- 70℃

Relative Temp

<95%

Dimensions (LxWxD)

70(H)×238(W)×170(D) mm(Desktop)

Net Weight

2.3Kg
