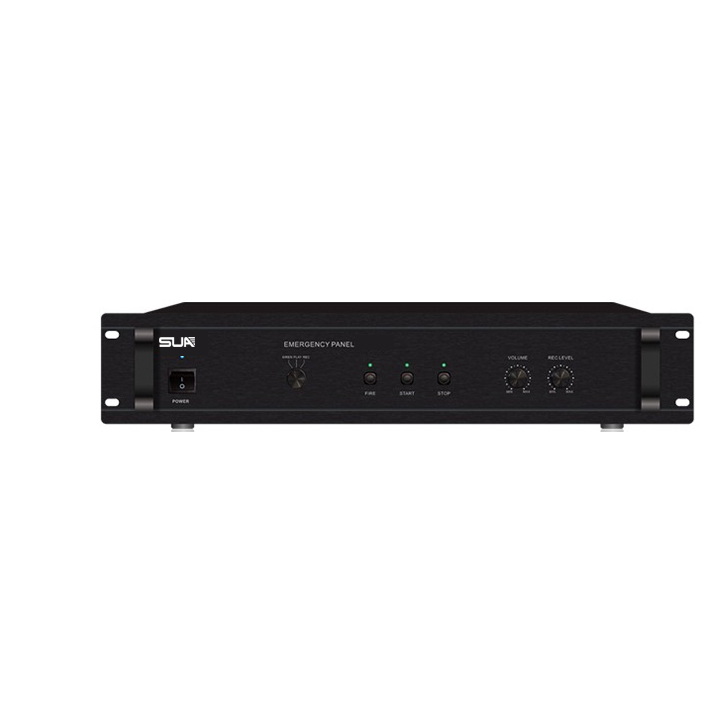

Alarm Panelis used in a public address system to produce an alarm sound either by a short-circuit signal to trigger auto-alarm or by a manual pushbutton,it can output a built-in siren signal or a user-recorded voice alarm or siren,with the built-in 60-second recording IC,users may record their own voice alarm or siren.
Can work with a fire alarm system to facilitate the orderly evacuation of a building in the event of an emergency.
Can be operated manually to conduct a fire or an emergency drill.
1) The alarm panel produces an alarm sound automatically when activated by an external signal or manually by the pushbutton.
2) The siren message can be either a built-in siren or a user pre-recorded voice message.
3) 60-second digital IC for voice message recording via MIC.or LINE input.
|
Model |
AR510 |
|
Mic. Input |
<5mV , 600ohms(Ω),unbalanced |
|
Line Input |
<400mV , 10k ohms(Ω),unbalanced |
|
Line Output |
>200mV (Siren signal or pre-recorded voice) |
|
Fre. Resp. |
100 Hz~3.4kHz(±3dB) |
|
THD |
<0.01% at 1kHz |
|
ADC/DAC |
Sampling frequency:8kHz 5Bit |
|
Record Time |
1minute(8000-10000 times) |
|
Alarm Activation Input |
One |
|
Alarm Activation Level |
(0V) shortcut signal |
|
Power Cable |
(3×0.75 mm2)×1.5M (standard) |
|
Power Supply |
Optional |
|
Power Consumption |
5~10W |
|
Dimension |
89(H)×483(W)×350(D) mm |
|
Packing Size |
185(H)×520(W)×435(D)mm |
|
Net Weight |
6.08kg |
|
Gross Weight |
7.78Kg |
