16x16 Digital Audio Matrixoffers an easy operation of collecting different music programme from different audio sources,and can play a same audio to all the speaker zones,also can play diferent audio to different speaker zone.

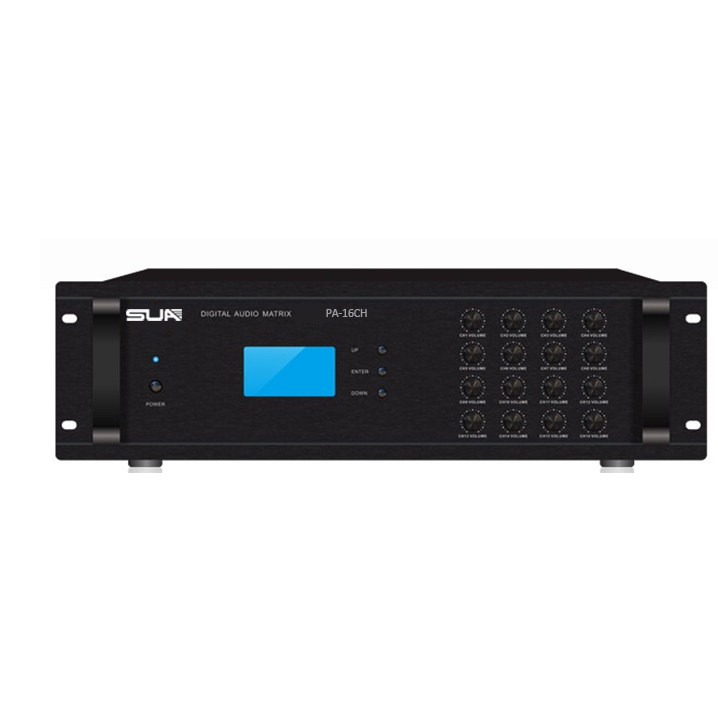

1) 16X16 Digital Audio Matrix (3U panel).
2) With LCD sreem in English menu.
3) With volume control for each zone.
4) This control unit integrates 16 source inputs, 16 amplifier outputs and a priority bus interface.it can mute background music whenever it has received priority input signals for zone paging and emergency alarms.
5) 16 inputs and 16 outputs.
6) LCD display and for convenient operation program schedules.
7) Prority bus for zone paging and emergency alarms.
8) Several paging modes (all zone,group zones,and individual zone) could be achieved through this paging console.
|
Model |
PA16CH |
|
Line Input |
16 channels:EMC2 for emergency alarm |
|
Paging Mic. Input |
RMIC1~RMIC5:10k ohms(Ω) 10V ,balanced |
|
Line Output |
16 channels:(1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 available) |
|
EMC1 Input |
10k ohms(Ω) 330mV ,unbalanced |
|
Line Input |
10k ohms(Ω) 330mV ,unbalanced |
|
Line Output |
10k ohms(Ω) 0.775V (0 dB) ,unbalanced |
|
Mute functions |
RMIC1 overrides Input B, RMIC2 overrides Input C;RMIC3 overrides input D; RMIC4 overrides input E;RMIC5 overrides input F; EMC1 overrides EMC2. |
|
Fre. Resp. |
60 Hz ~ 16k Hz (± 3 dB) |
|
Alarm Activation Input |
(0V)Shortcut signal ALARM IN:CH1~CH16 |
|
Alarm Activation Output |
(0V)Shortcut signal ALARM OUT:CH1~CH16 |
|
Indicator |
POWER |
|
Protection |
AC FUSE×0.5A×1 |
|
Power Cable |
(3×0.5 mm2)×1.5M (standard) |
|
Power Supply |
AC 220V ± 10% 50-60Hz |
|
Power Consumption |
15~20W |
|
Dimension |
133(H)×483(W)×390(D) |
|
Net Weight |
7.1Kg |
