Description

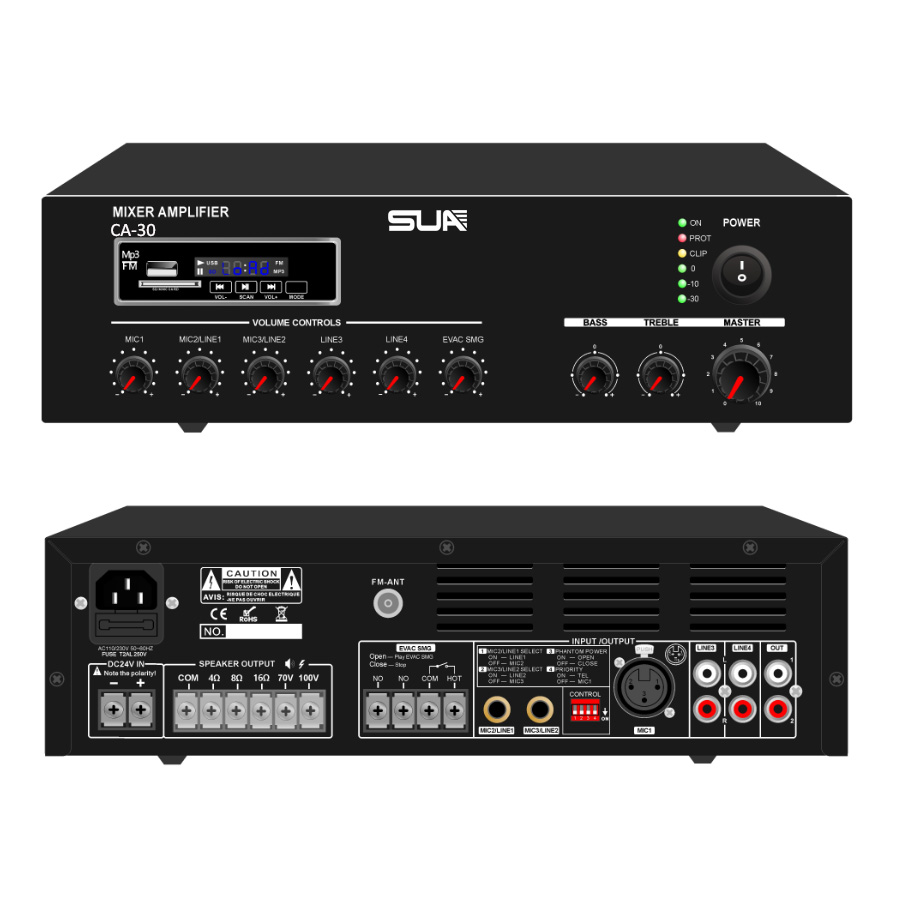

The PA Mixer Amplifier with MP3, FM tuner & blue tooth, its rated power output from 30W, 60W to 120W, it is ideal for school, super market, bank, hotel BGM and speech use. It is all in one solution with two sources, pre amplifier and mixer power amplifier into one unit, which is economy but of high reliable performance.

It integrates 2 audio sources into a mixer amplifier, plus Mic1(XLR) and Mic/Line input 2-3 (6.3mm Jack), two line inputs, one Tel input and one line output. Mic1 VOX with highest priority except Tel input. One USB and one SD slots on front provide easy access and operation for installer and end-user.

The amplifier is designed with complete protection of overload, short circuit and high temp to avoid any damage.

These amplifiers are suitable for applications in bank, mosque, school, hotel, restaurant, theme centers and shopping center.

Features

Compact mini size public address amplifier

Ideal for classroom sound system use

Built-in 100V/70V transformer technology

Tabletop amplifier with Mp3 player, FM radio & blue tooth

Rate power output at 30W, 60W to 120W.

Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms

Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth

LED indicators for power, clip, protect and signal

Mic1-3 and line 1-2 and telephone input. Mic1 of balanced XLR input with phantom power on rear panel. Mic2-3 microphone or line switchable unbalanced 6.3mm phone jack input. Line 1-2 input of RCA input and one RCA line output. Telephone input with VOX priority and MOH (Music on Hold).

Volume control for Mic1-3, line1-2, Mp3/FM, bass/treble and master

With short-circuit, clip, overload and high temp protection

AC220V or 115V & 24V DC both operation system

SPECIFICATION SHEET
