BASIC INFO

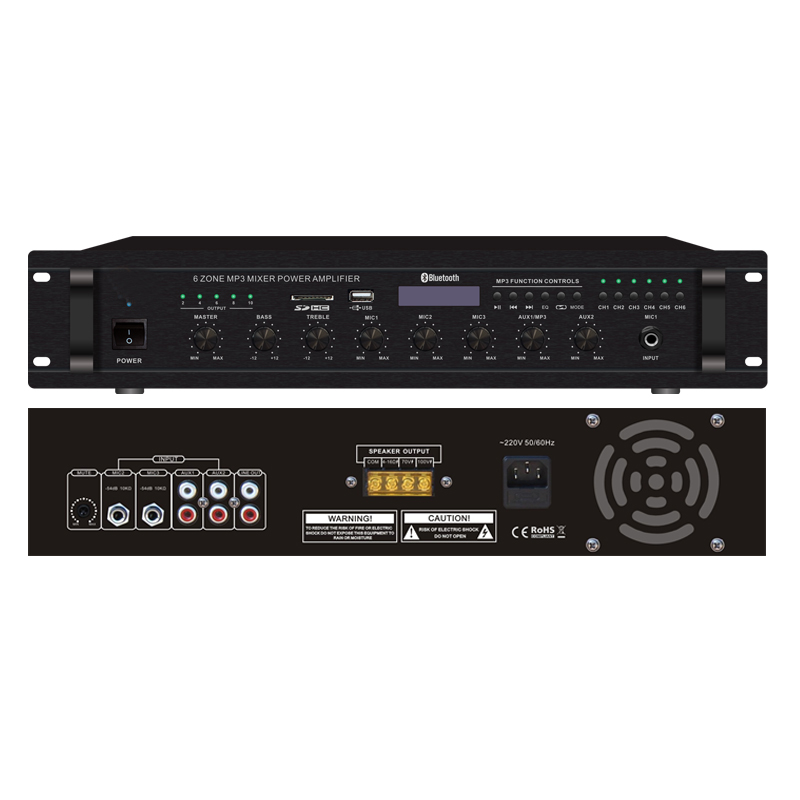

100V MP3 Player Amplifier With USB BT FM
The PA System USB Amplifiers with FM tunerare designed to suit PA system applications such as paging announcements,intercommunications, BGM and broadcasting in schools, offices and shops etc.
1) Built-in USB MP3 player and FM radio with frequency range 87.5 MHz~108 MHz.
2) Power rates: 60W/120W/240W/350W/500W available.
3) Luxury aluminium alloy front panel.
4) TOSHIBA amplifier transistors.
5) 100% pure copper toroidal transformers.
6) 70V/100V and 4~16Ω loads.
7) Standard 19" 2U height.
8) 3 MIC inputs,2 LINE inputs,1 LINE output.
9) Individual volume controller for MIC & AUX inputs.
10) MASTER volume controller.
11) BASS and TREBLE tone controller.
12)MIC 1 input has precedence over the inputs other than
13) Protections of short circuit,overload,high temperature.
2) Power rates: 60W/120W/240W/350W/500W available.
3) Luxury aluminium alloy front panel.
4) TOSHIBA amplifier transistors.
5) 100% pure copper toroidal transformers.
6) 70V/100V and 4~16Ω loads.
7) Standard 19" 2U height.
8) 3 MIC inputs,2 LINE inputs,1 LINE output.
9) Individual volume controller for MIC & AUX inputs.
10) MASTER volume controller.
11) BASS and TREBLE tone controller.
12)MIC 1 input has precedence over the inputs other than
13) Protections of short circuit,overload,high temperature.
| Rated Power | D-60T/60W | D120T/120W | D240T/240W | D350T/350W | D500T/500W |
| Output Mode | 4-16 ohms;70V/100V line voltage | ||||
| 6 zoned Ouput | 100V line voltage | ||||
| MIC Input | MIC1/ MIC2/MIC3:600 ohms 5-8 mV , Unbalanced | ||||
| AUX Input | AUX1/ AUX2:10k ohms 150-470 mV , Unbalanced | ||||
| FM Frequency Range | 87.5 MHz~108 MHz | ||||
| External Audio Input | USB slot,RCA connector | ||||
| Frequency Response | 60Hz~15kHz(±3dB) | ||||
| THD | <0.5% at 1kHz,1/3 rated power | ||||
| S/N | Line:85 dB,MIC:>72 dB | ||||
| Tone | BASS:100 Hz(±10dB),TREBLE:12kHz(±10dB) | ||||
| Muting Function | MIC1 overrides MIC2,MIC3,AUX1,AUX2 with 0~30dB dB attenuation | ||||
| Cooling | DC 12V FAN | ||||
| Protection | AC fuse, short circuit,overload,high temperature | ||||
| LED Indicators | POWER,SIGNAL, CLIP,PROTECT | ||||
| Power supply | Optional | ||||
| Power Consumption | 95W | 175W | 350W | 485W | 640W |
| Dimensions | 89(H)x483(W)x366(D)mm | ||||
| Packing Size | 185(H)x520(W)x435(D)mm | ||||
| Net Weight | 11.2Kg | 12.7Kg | 15.1Kg | 16.1Kg | 18.6Kg |
| Gross Weight | 11.8Kg | 13.6Kg | 16Kg | 17Kg | 19.8Kg |
