6 zone mixer amplifier with DAB+

BASIC INFO

Features:

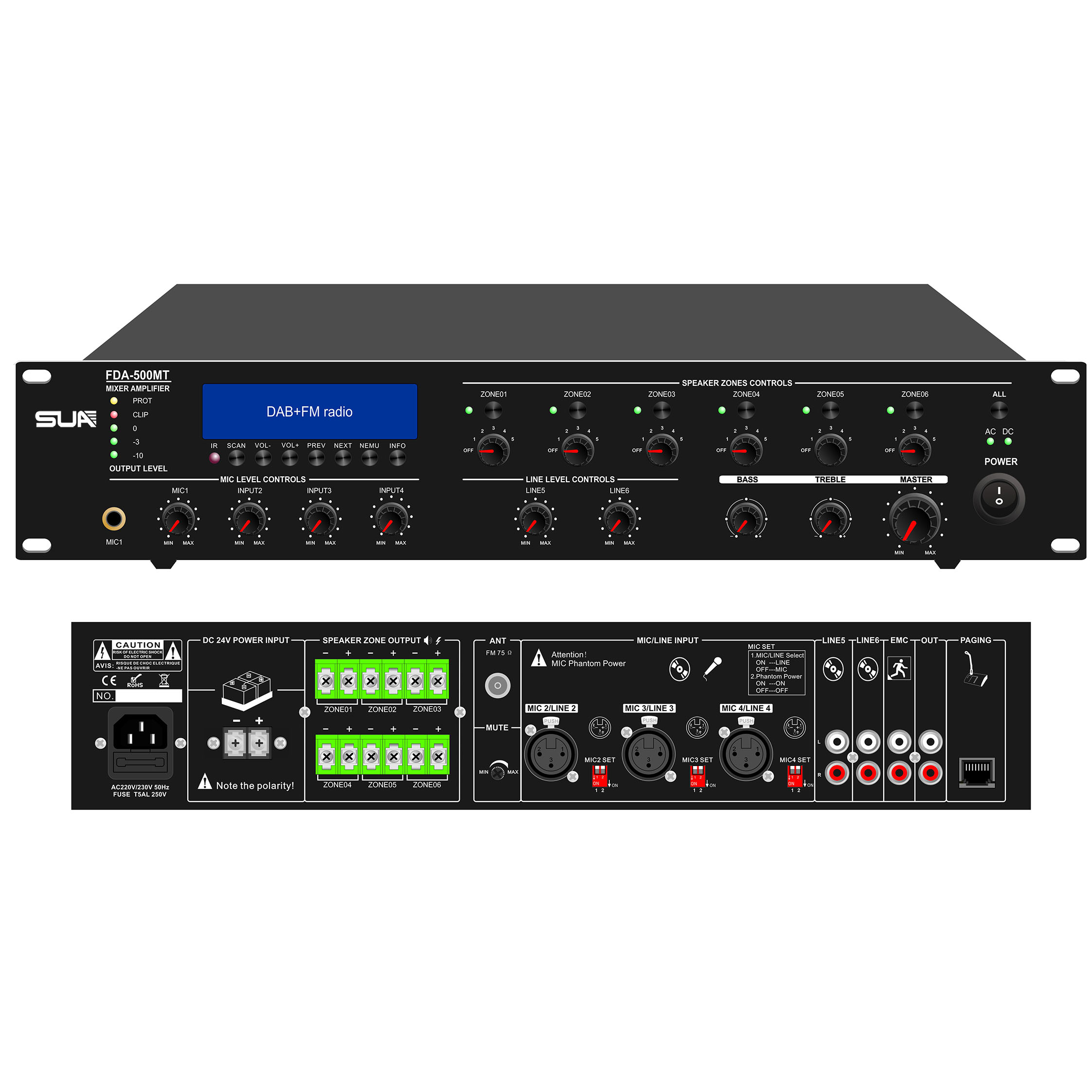

Public address (PA) 6 zone commercial mixer power amplifier.

19” rack mount amplifier of 2U height.

Rated outputs of 60W, 120W,240W,350W,500W.

6 zonespeaker outputs of 100V or 70V.

Six zone speaker outputs with independent volume control.

Built-in MP3 player by USB & SD and DAB+FM tuner.

Four microphone inputs, Mic1(6.3mm) and Mic/Line input 2-4 (XLR).

Line 1-2 inputs on rear panel by RCA.

EMC input on rear panel with highest priority by RCA.

One amplifier capacity of 6 remote paging microphones FDA-500RM up to 300 meters.

Microphone1 of VOX features of highest input priority except EMC input.

Volume control for Mic1-4 and line 1-2, bass & treble and zone volume control on front panel.

AC and DC Power, protection, clip six zone status indicators and output level meters.

Overload, short circuit and high temp protection.

AC 230V and DC24V operation system.

Specification:

Model	FDA60MT	FDA120MT	FDA240MT	FDA350MT	FDA500MT
Description	PA 6 Zone Mixer Amplifier with Mp3 & Tuner
Rated Power Output	60W RMS	120W RMS	240W RMS	350W RMS	500W RMS
Speaker Output	70V, 100V and 4-16Ω
Input	Mic1-4: 2.5mV, Line1-2: 250mV; EMC: 250mV
Frequency Response	80-16KHz
THD	<0.1%
S/N Ratio	>70dB
Protection	High temp, short circuit, clip & overload protection
Power Supply	AC230V or AC110V, 50-60Hz
Power Consumption	100W	200W	400W	500W	650W
Dimension	418(W)×318(D)×88(H)mm
Weight	8.2Kg	9.5kg	12kg	13kg	14.5kg
Warranty	5 years
