CD Player

Category：Audio Mixer

BASIC INFO

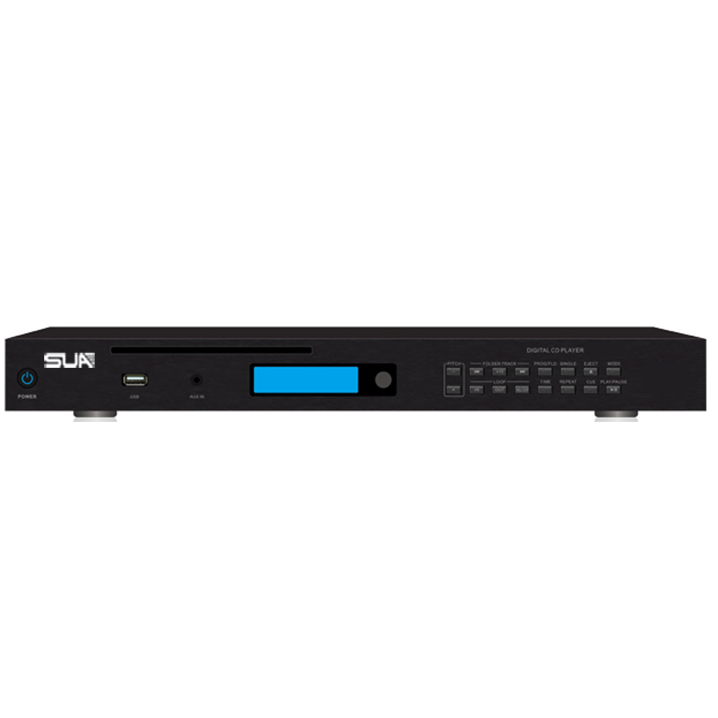

DC60PYis a professional-quality CD Player designed with USB slot,Bluetooth connectivity and AUX input as an audio source for installation in retail stores, restaurants, houses of worship,hotels and other venues.

Our aim when designing this player was to produce a visually appealing productwhich would look comparable to higher priced models, and give an exceptionalperformance to match.

We trust that it will give you hours of listening pleasure, and provide years of unparalleledperformance.

♦1U design with removable brackets for installation in standard equipment racks.
♦The drive will load the CD automatically when it is inserted into this slot.
♦USB slot, Bluetooth connectivity, AUX input.
♦RCA and XLR outputs.

♦RS232 serial port.

Model	DC60PY
Frequency Response	20 Hz 0dB -0.5dB 1dB
(Using 1kHz 0dB as reference )	100 Hz 0dB 0dB 1dB
	10 kHz 0dB -0.5dB 2dB
	20 kHz 0dB - 3.0dB 2dB
De-emphasis Response	5 kHz 0dB -4.5dB 2dB
De-emphasis Response	16 kHz 0dB -9.0dB 3dB
Channel Balance	Better than 2.0dB
Separation	More than 60dB
Harmonic Distortion T.H.D + Noise	Less than 0.05%
S/N Ratio	More than 85dB
Dimension (LxWxH)	510483250mm
Dimensions in mm (LxWxH)	483x250x51mm
Net weight	4.5Kg
Gross weight	5.0Kg
