AM/FM stereo digital tuner with USB

Category：Audio Mixer

BASIC INFO

Description:

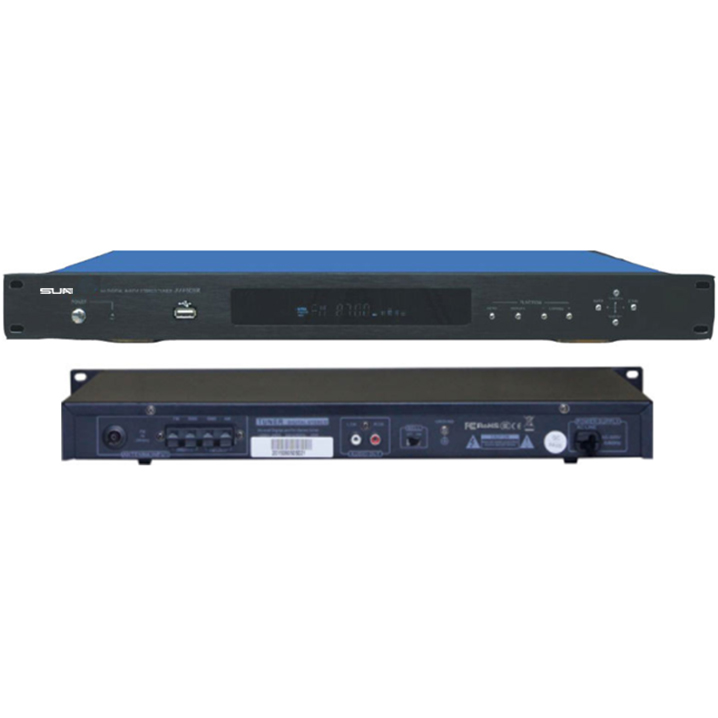

The AD100Uis an AM/FM stereo digital tuner with USB that provides advanced technology and convenient use for a
public address background music source. It is built-in AM/FM digital stereo tuner, it also integrate Mp3 player with
USB on front panel, the USB input with priority over tuner. With stereo RCA output, one selector to pre-set the
output between mono or stereo. Simple and easy use audio sources player for commercial audio system and PA sound
system.

Model	AD100U
Audio output	500mVrms
Output impedance	1K ohm
Input voltage	AC 220V 60Hz
Power consumption	6Watts
Memory	60 Station
AM SECTION
Frequency range	522-1620 KHz STEPS 9KHz
Sensitivity	16dB
S/N	40dB
Distortion	0.30%
Frequency Response	80Hz-4KHz
FM SECTION
Frequency range	87.5-108MHz STEPS 50KHz
Sensitivity	20dB
S/N	40dB
Distortion	0.20%
Frequency Response	20Hz-20KHz
Antenna Impedance	75 Ohm
