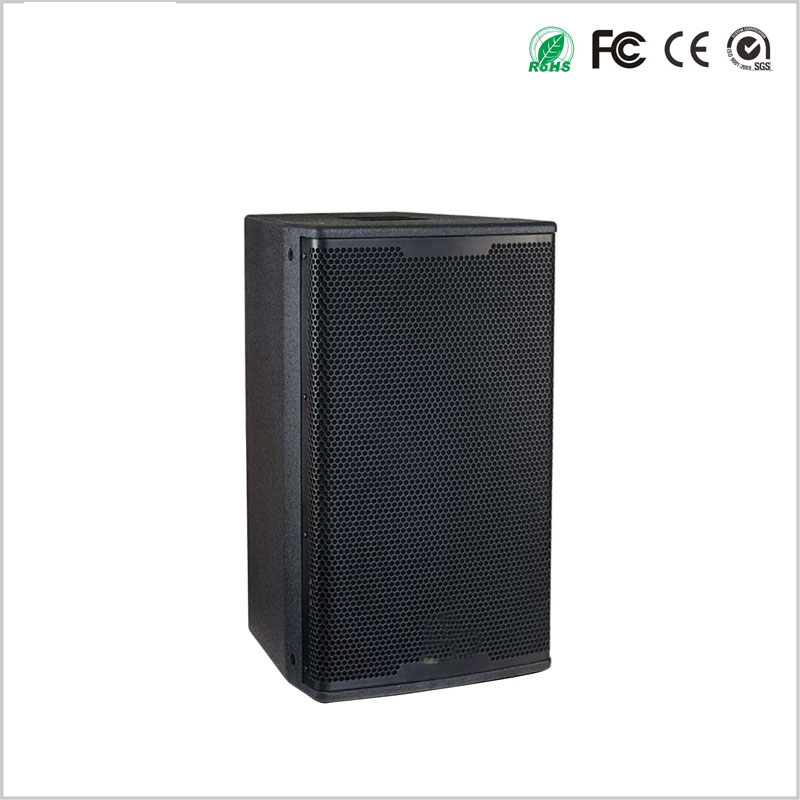

2 Way Single 15 Inch Professional Speaker

BASIC INFO
Description

◆The domestic high-qual ity unit is used as the core component, with smooth frequency response and precise coverage angle. The

sound is crystal clear and transparent, and the space and texture are excel lent.

◆A new generation of cost-effective professional speaker system, designed for all kinds of sound reinforcement places such as slow

rocking bar. It is known for its excel lent conversion characteristics such as high conversion efficiency, strong penetration level,

dynamic and powerful. Its constant directivity horn and neodymium treble design have almost the same sound field coverage as the

woofer. The designed matching high-frequency horn and the coverage characteristics of the woofer achieve a smooth transition,

providing a wide sound coverage angle, natural and open sound. It has a high conversion efficiency, making it easier to match the

power amplifier, and the drive problem is solved. And through the LMS, SmaartLive and other software to design a rigorous crossover

circuit, with excellent signal crossover processing performance, and designed with high-pitched dynamic protection circuit, can make

the speaker effectively protected under the conditions of continuous high output.


Specification

Model KP612 KP610
System 2-WAY FULL RANGE 2-WAY FULL RANGE
Frequency response 50Hz-18KHz 55Hz-18KHz
Driver LF:12”×1,HF:1.73"×1 LF:10”×1,HF:1.34"×1
Nomina limpedance 8 Ohms 8 Ohms
System sensitivity 97dB 93dB
Rated power 450W 300W
Peak power 1800W 1200W
Maximum SPL 130dB 123dB
Coverage angle horizon90°,verticality60° horizon80°,verticality50°
Crossover  mode Inside  crossovers Inside  crossovers
Suspension with flying points with flying points
Net weight 22.5KG /
Size(mm) 350W×385D×602H /
Package size(mm) 445W×485D×697H /
