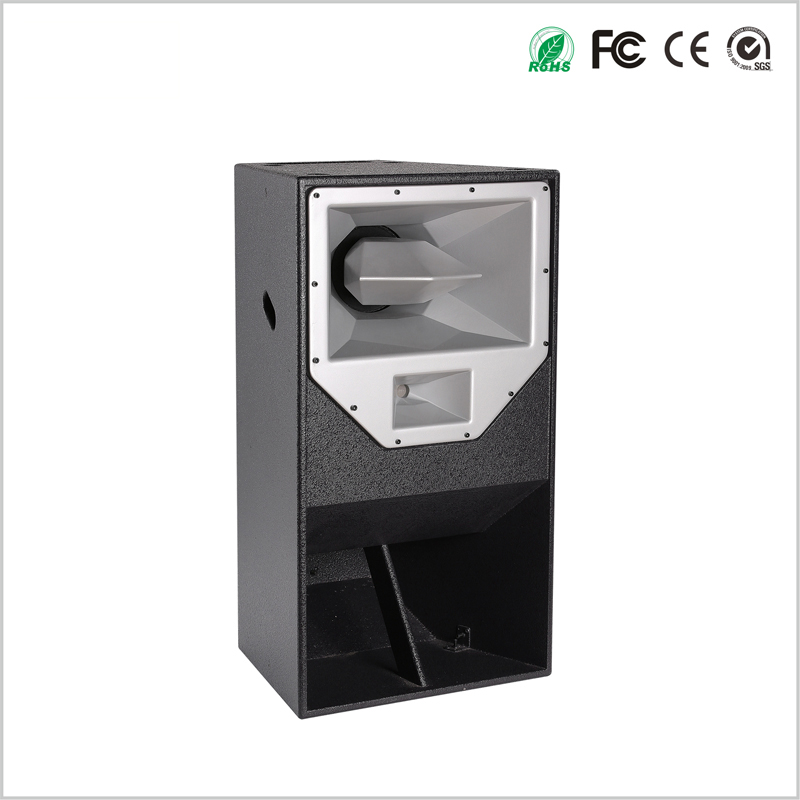

3 Way Single 15 Inch Professional Speaker

BASIC INFO
Description

◆Combined with the characteristics of the bar elements, the sound field design through the software model uses a 120-degree

wide-type waveguide to make the sound more evenly balanced. The box design uses a circular air-conducting method to make

the low-frequency more powerful and elastic, high-density paper cone. Make the sound explosive and high speed, so that the

hearing will not be tired due to the long time. In particular, the domestic custom-made high-quality speaker unit is the core component,

with smooth frequency response and precise coverage angle. The sound is crystal clear and transparent, and the space and texture

are excel lent. The crossover designed by LMS, SmaartLive and other software uses high-purity OFC oxygen-free copper inductor

wire, which minimizes the influence of the wire itself and greatly improves the power carrying capacity. Using special MKP capacitor,

the loss is very low and the internal resistance is very small. The high-power aluminum shell resistor of the enthusiast grade is adopted,

the heat dissipation speed is fast, the resistance value is accurate, and the parameter variation is smal l, which ensures excel lent

stability of sound reproduction. The frequency divider uses a fever-level scaffolding welding process to provide a powerful guarantee

for high-qual ity playback of the speaker system!


Specification

Model R2
System 3-WAY FULL RANGE
Frequency response 35Hz-18KHz
Driver LF:15"×1
MF :8"×1 HF:1.73"×1
Nomina limpedance 8Ohms
System sensitivity LF120dB HF107dB MF106dB
Rated power LF:400W HF:50W
MF:200W
Peak power LF:1600W HF:200W
MF:800W
Maximum SPL LF127dB HF137dB MF130dB
Diffusion  Angle 50°×25°
Crossover  mode Internal Crossover
Installation Multil-point suspension
Net weight 62KG
Size(mm) 530W×450D×920H
Package size(mm) 622w×540d×1012h
