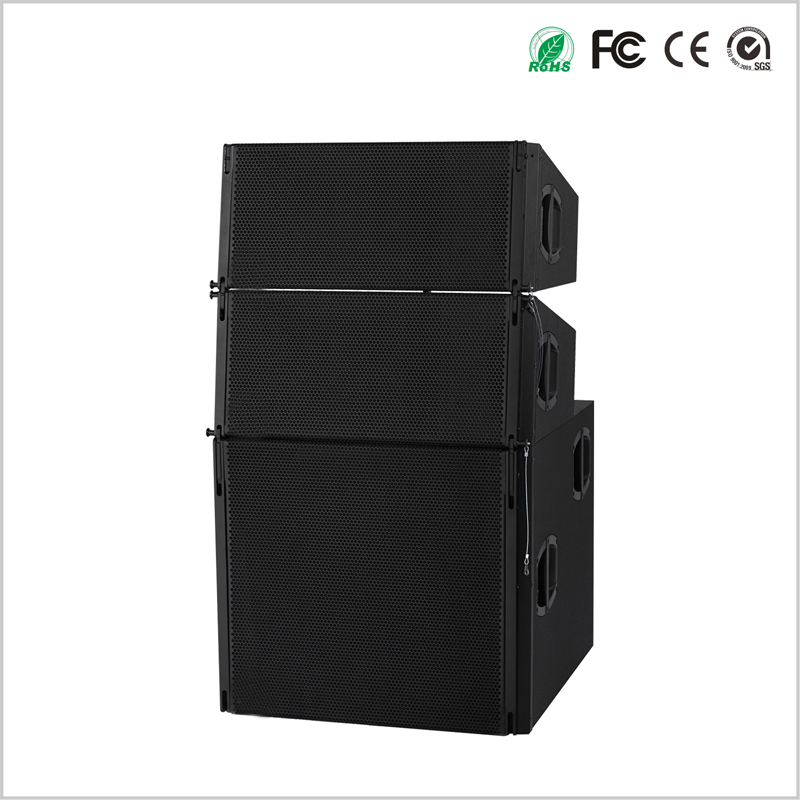

◆The speaker uses a passive three-way design with two 10" low frequency

units, one 8" IF unit with horn, and two 1 .4" high frequency compression

units (2" voice coi l mounted on the ring waveguide) . Due to the symmetrical

dipole arrangement of the low frequency unit of the neodymium magnet and

the intermediate frequency unit and the high frequency unit of the coaxial

structure, the adjacent frequency bands are smoothly superimposed by the

cross-coupl ing design; this can make the excel lent 80° horizontal constant

pointing angle control Lower frequency limit to 250 Hz. The mechanical component

structure and acoustic design al low for the erection of up to 24 vertical l ine

arrays. It can be composed of a separate line array system or a system with

multiple SUB speakers. The cabinet is made of nautical wooden plywood and

the surface is treated with anti-col l ision paint and open-air protective paint

(Polyurea Cabinet Protection). The front panel of the speaker is protected by a

hard metal mesh cover with a sound-permeable foam. The side panels are equipped

with handles and two additional built-in handles are provided at the bottom of the

rear of the cabinet.
