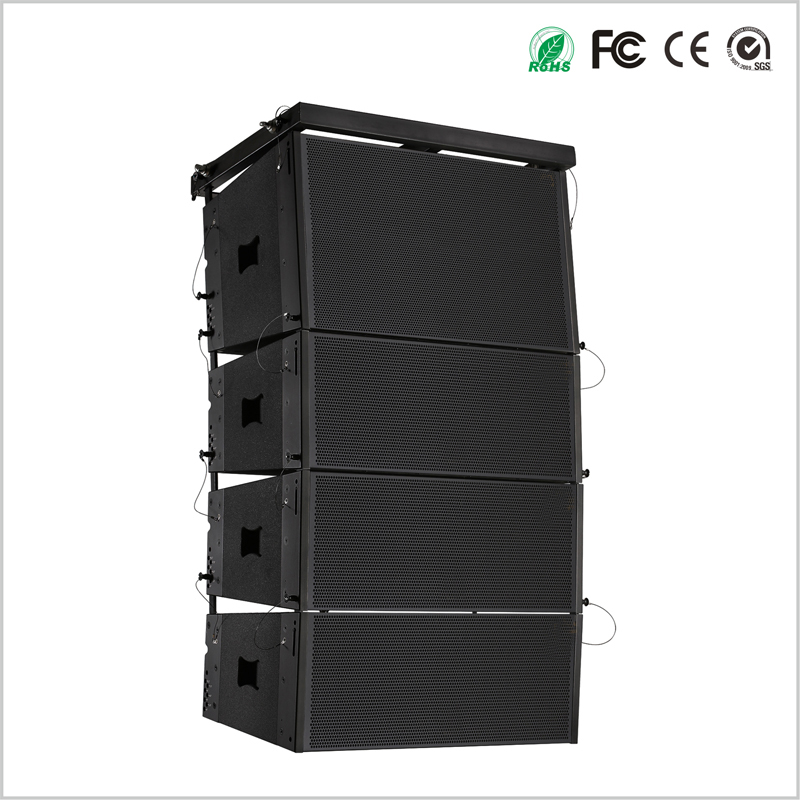

3 Way Single 12 Inch Line Array Speaker

BASIC INFO
Description

◆The C127 model is designed for fixed instal lation and has special ly designed

mountings for easy and economical l ifting.

◆Accurate vertical pointing control and coverage angle; compact and lightweight;

quick and easy integration of slings; true three-way design; LAPS array aiming

software; 120° horizontal ful l-frequency l ine array module; fast hanging or

fixed instal lation . Therefore, we only need to select the appropriate number

and the ultra-low ground to form a sound reinforcement system with wide

directivity, long projection distance, high sound pressure and good hearing.

◆The C215 is a multi-functional low frequency loudspeaker system. Can be

combined with C127 ful l-range speakers l inear array or independent array;

◆Widely used in large square sound reinforcement, stadiums, large performing

arts venues, concerts, large multi-purpose hal ls, etc.


Specification

Model C127 C215
System 3-WAY FULL RANGE SUB BASS
Frequency response 58Hz-18KHz 40Hz-400Hz
Driver LF:12"×1,MF:6.5"×1,HF:3"×2 LF:15"×2
Nomina limpedance 8 Ohms 4 Ohms
System sensitivity 106dB 105dB
Rated power LF600W  MF300W HF200W 800W
Peak power LF:2400W MF 1200W HF 800W 3200W
Maximum SPL LF:134db MF:132dBHF:141dB 140dB
Disperion  Angle horizon:120° ,verticality:10° /
Crossover  mode External divider External divider
Suspension Linear  suspension Linear  suspension
Net weight 51KG 76KG
Size(mm) 912W×536D×365H 915W×535D×540H
Package size(mm) 998W×640D×478H 1045W×608D×654H
