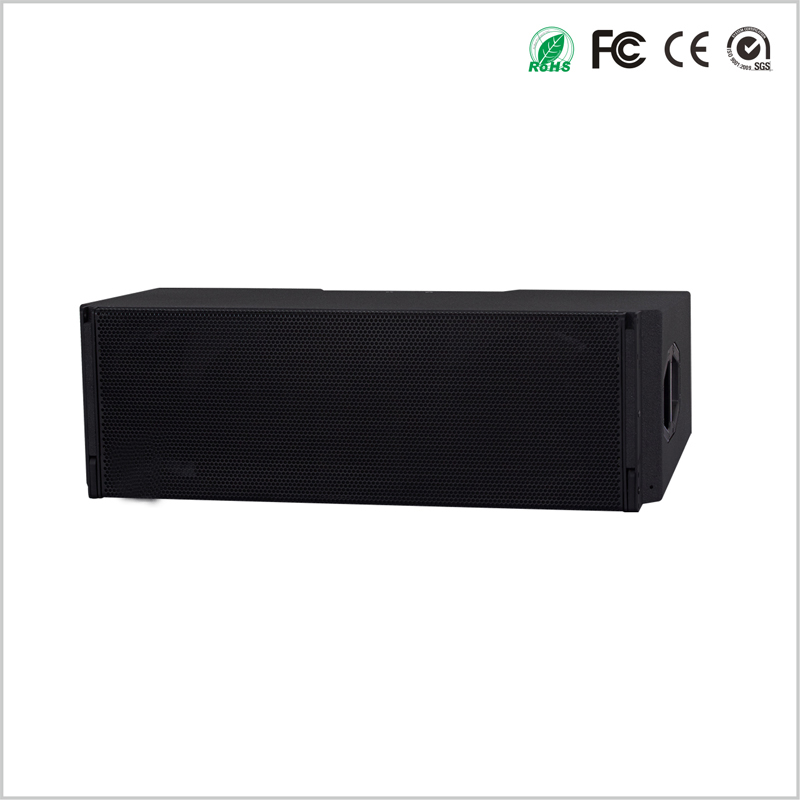

◆Three-way design, 2 x 12" low frequency driver, 1 10" IF drive unit and

2 3" high frequency compression drive units and 3" waveguide diffuser.

The mechanical components and acoustic design make the Q212

vertical column type hanging, the number of hanging up to 24, the vertical

coupling angle of the speaker can be adjusted between 0 ° and 7 °, the

step size is 1 °. Cyl indrical waves form a very consistent coupl ing in a

vertical plane. Since the film low-frequency driver uses a dipole arrangement,

the excellent 80° horizontal constant diffusion angle can control the lower

l imit to 250 Hz. The Q212 can be composed of a l inear array system

independently or with multiple Q212A speakers. The Q212 speaker uses

marine plywood, lacquer and PCP (Polyurea Cabinet Protection). The front

panel of the speaker is protected by a rigid metal mesh, the side panel and

the rear panel incorporate four handles, and the rear panel is equipped with

two NL8 paral lel interfaces.

Specification
