BASIC INFO
Description
◆ The new CLASS-D ampl ifier , high efficiency, good sound qual ity, low temperatures.
◆ High qual ity toroidal transformer.
◆ High efficiency cool ing system.
◆ Overload / overcurrent protection, over-temperature protection,short circuit protection, DC protection, distortion
protection and l imiter protection.
◆ Smal l size and l ightweight .
◆ SMT technology .
◆ Using professional fever-grade capacitor.
Specification

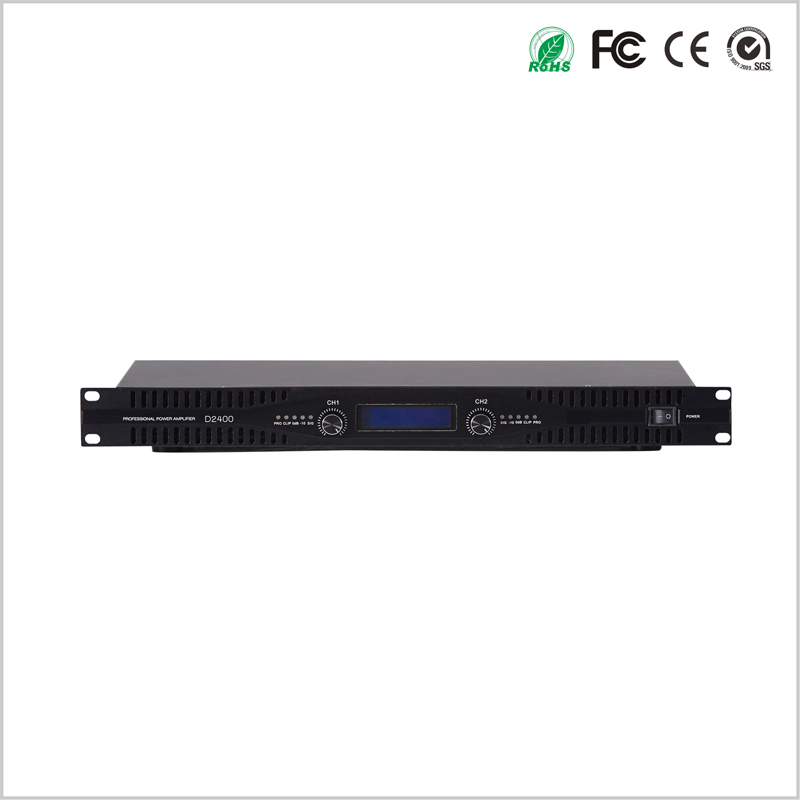

| MODEL | D2600 | D2400 |
| Rated output power 8Ω | 600W*2 | 400W*2 |
| Rated output power 4Ω | 1150W*2 | 750W*2 |
| Frequency response | 20Hz-20KHz | |
| Signal-to-noise ratio | >98db | |
| THD | <0.05% | |
| Damping coefficient | >1000(100Hz) | |
| Input Impedance | 10kΩ/ 20kΩ | |
| Input sensitivity | 1.0V | |
| Resolution | >70db | |
| Output Circuit | Class D | |
| Conversion rate | >20V/µs | |
| Net weight(kg) | 3 | |
| Package size(W*D*H) mm | 483*250*44 | |
| Package size(W*D*H) mm | 530*440*130 | |
