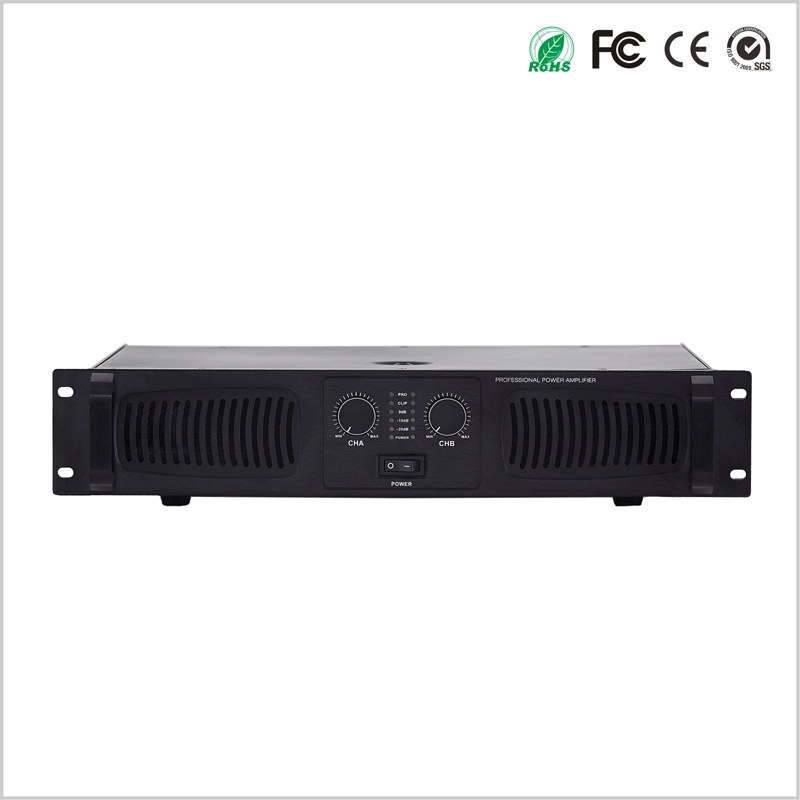

2 Channel Transformer 2U SMT Power Amplifier

BASIC INFO
Description

◆Intel l igent Variable Speed Heat Dissipation.

◆For a commom ampl ifier,when the music peak power is coming,aslo the voltage has not dynamic change,the common

ampl ifier wi l l not work or has no protection function.

◆But the SH series ampl ifier has the Dynamic l imit and cl ip function,the SH ampl ifier wi l l do the job perfectly.

◆The SH series has passed many test.The machine can continuous working without turn off for 96 hours in the terriable

situation including high and low temperation,shaking,droping and so on .


Specification

Model H303 H304 H305
RMS 8ohms 300W*2 400W*2 500W*2
RMS 4ohms 550W*2 700W*2 800W*2
Frequency response 20-20KHz(+-1.5)
THD <0.05
S/N >90dB
DF >800db(100hz)
Crosstalk >60dB
Slew rate 10V/us
Input sensitivity 0.775V/1.0V/1.v
Net Weight 11.5kg 12kg 13kg
