◆Al l components are designed according to IP46 international dustproof and
waterproof grade standards, and special flow guiding and splash prevention
devices are designed on the cabinet structure. The equipment is assembled
with a special production sealing process, so that the equipment can achieve
the high-qual ity sound-reducing function whi le achieving the dust-proof and
waterproof safety features above IP46.
◆Q1 has a real and natural performance. Its biggest features are smal l size,
light weight, long projection distance, high sensitivity, strong penetrating power,
high sound pressure level, clear language, high rel iabi l ity, and uniform sound
coverage between regions. . Durable exterior, high-density spl int is used as
the structural material of the cabinet, and the surface of the cabinet is made
of high-gray black and white emery paint. Such a speaker is very strong in
anti-aging strength, can withstand the sun and rain for a long time, and is installed
in the house to prevent the harsh environment of moisture.
◆Widely used in theaters, multi-purpose hal ls, churches, schools, large and
medium-sized sports fields, large and medium-sized indoor and outdoor
performances, language reinforcement, etc.
Specification

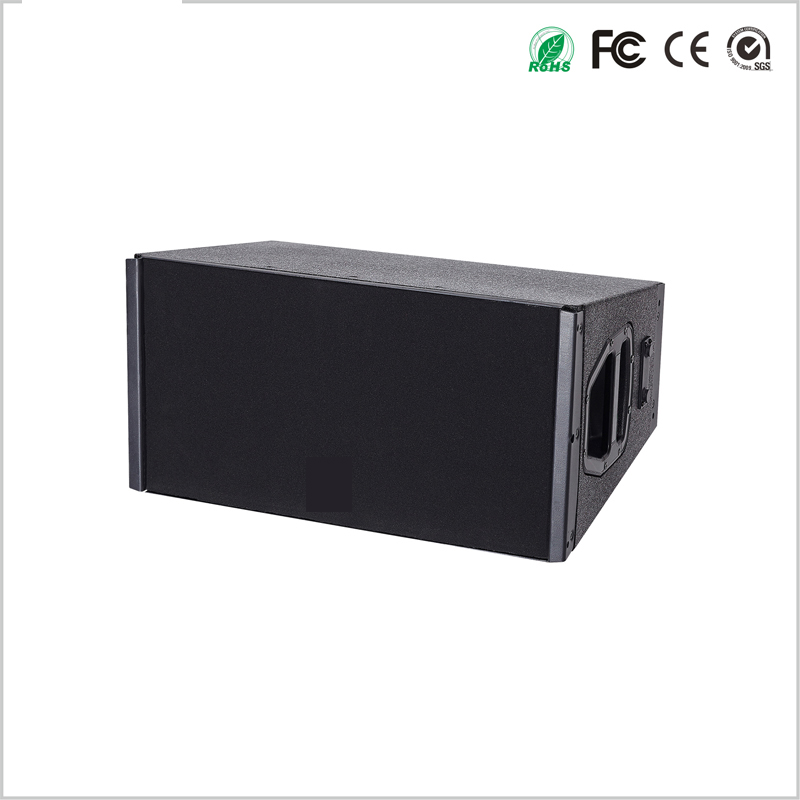

Model | Q1 | Q2 |

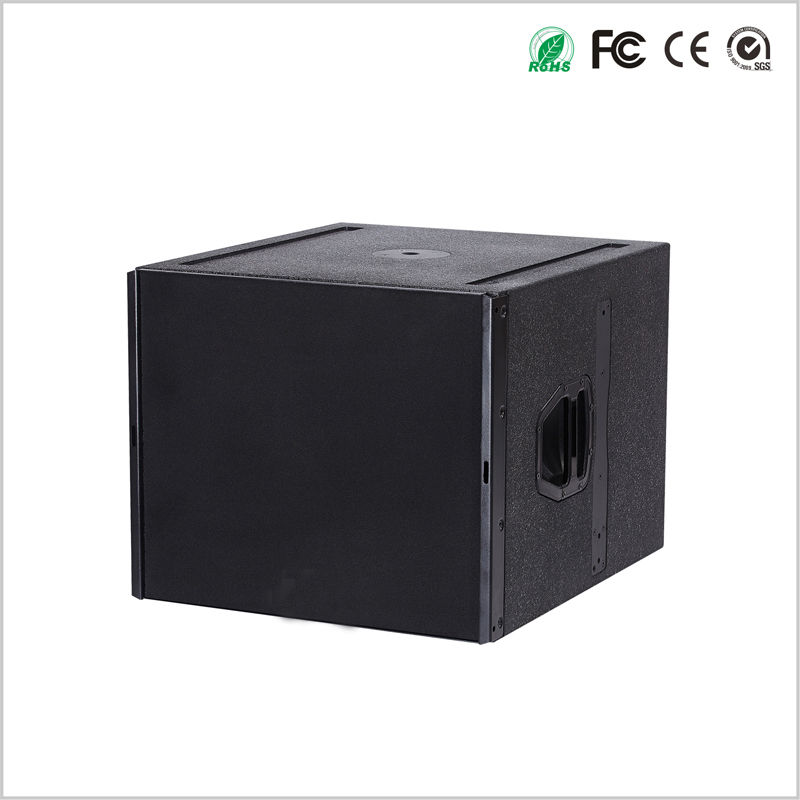

System | 2-WAY Full Range | Sub-Base |
Frequency response (±3dB) | 60Hz-18kHz | 40Hz-400Hz |
Components | LF:2x10in,NeodymiumΦ76mm | LF:1x18in,(220magnetΦ100mm) |
HF:1x3inch,NeodymiumΦ75mm | / | |
Nominal Impedance | 8ohms | 8ohms |
System sensitivity | 105dB | 103db |
Maximum SPL | 139dB | 137db |
Rated power | 800W | 800W |
Peak power | 2400W | 1600W |
HxV | 75°x150° | / |
Connectors | 2xSpeakon| connectors (NL 4) | |
Enclosure material | 15mm plywood | |
Finish | Textured black paint | |
Grille | Black perforated steel | |
NG(Kg) | 23kg | 34kg |
Dimensions (W x D x H) | 583x310x425 mm | 635*720*547 mm |
