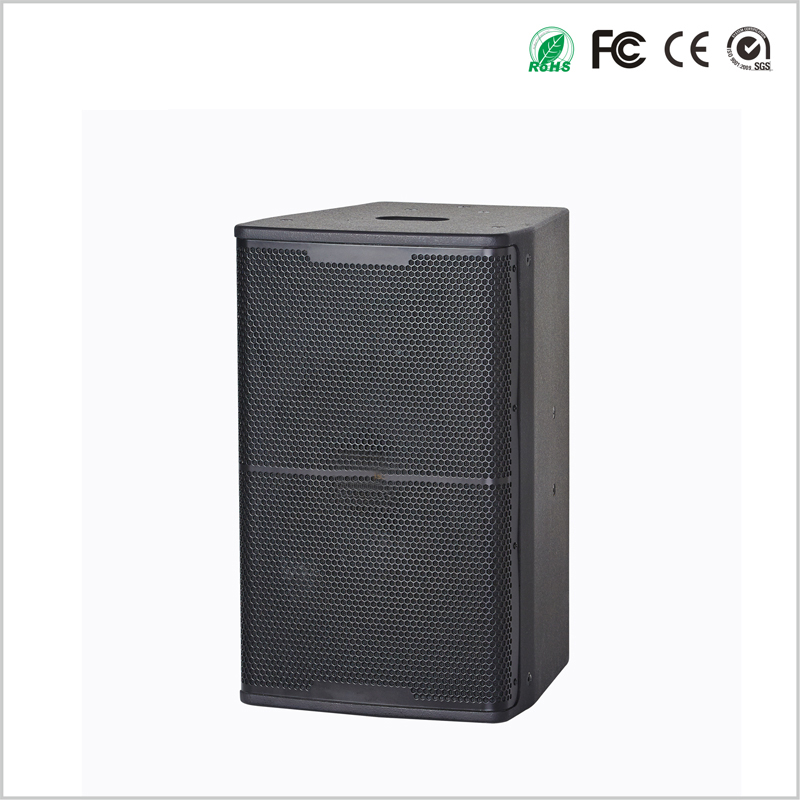

2 Way Single 12 Inch Professional Speaker

  • Product Item:KES6120/6110
  • Category:Products
BASIC INFO

  • Description

    The domestic high-qual ity unit is used as the core component, with smooth frequency response and precise coverage angle. The

    sound is crystal clear and transparent, and the space and texture are excel lent.

    A new generation of cost-effective professional speaker system, designed for all kinds of sound reinforcement places such as slow

    rocking bar. It is known for its excel lent conversion characteristics such as high conversion efficiency, strong penetration level,

    dynamic and powerful. Its constant directivity horn and neodymium treble design have almost the same sound field coverage as the

    woofer. The designed matching high-frequency horn and the coverage characteristics of the woofer achieve a smooth transition,

    providing a wide sound coverage angle, natural and open sound. It has a high conversion efficiency, making it easier to match the

    power amplifier, and the drive problem is solved. And through the LMS, SmaartLive and other software to design a rigorous crossover

    circuit, with excellent signal crossover processing performance, and designed with high-pitched dynamic protection circuit, can make

    the speaker effectively protected under the conditions of continuous high output.


    Specification

    Model KES6120 KES6110
    System 2-WAY FULL RANGE
    Frequency response 42Hz-20KHz 50Hz-20KHz
    Driver LF:12"×1, LF:10"×1,
    HF:1.36"×1 HF:1.36"×1
    Nomina limpedance 8 Ohms 8 Ohms
    System sensitivity 98dB 95dB
    Rated power 400W 300W
    Peak power 800W 600W
    Maximum SPL 125dB 122dB
    Crossover mode Inside crossovers
    Size(mm) 360*391*588MM 306*339*522 MM
