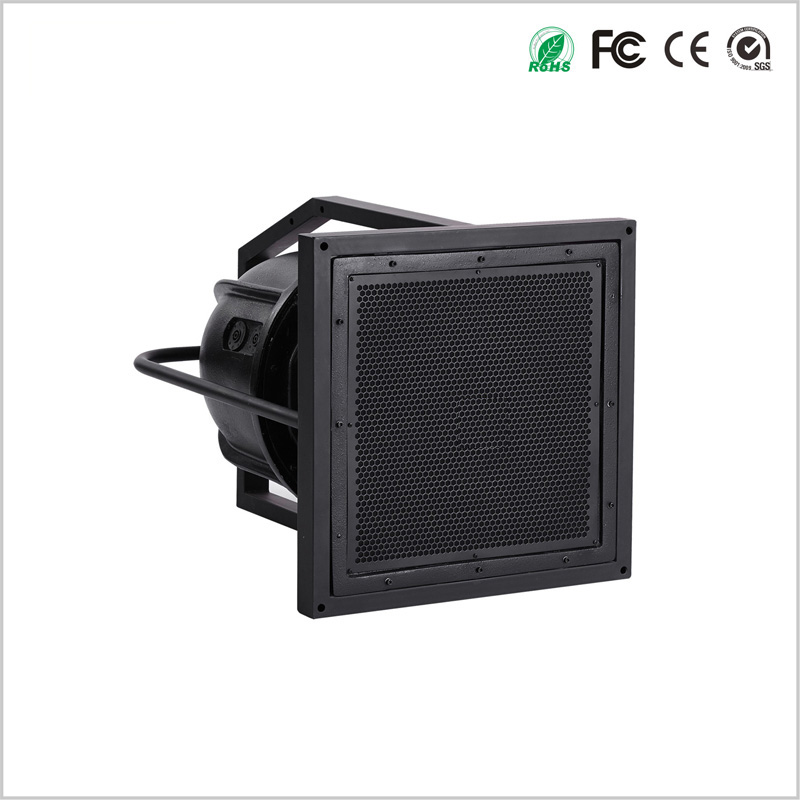

Long Distance Single 15 Inch Speaker

BASIC INFO
Description

◆It is a remote subwoofer speaker.

◆The magnet is 220mm and voice coi l is 100mm,the frame is cast aluminum frame.

◆The subwoofer speaker has a high power,also has a clear and neat bass.

◆It is suit for club,stage,large stage,it is a best choice to suit with l ine array and stage speaker.

◆The case is birch plywood case.

◆The magnet is iron oxide,it has a high powe.

◆The voice coi l is adopted high qual ity material which can bear extremely high temperature to reach a long time working mode.

◆The high strength cast aluminum frame to reach a low resonance in the woofer.

◆The subwoofer speaker is appl ied for bars,club,stage,plaza,square and multifunction room.


Specification

Model PH15 PH12
System 2WAY FULL RANGE 2WAY FULL RANGE
Frequency response 42Hz-18KHz 70Hz-19KHz
Driver LF:15"×1 LF:12"×1
HF:3"×1 HF:1.73"×1
Nomina limpedance 8 Ohms 8 Ohms
System sensitivity 97dB 103db
Rated power 500w 400w
Peak power 2000w 1600w
Maximum SPL 138dB 137db
Diffusion  Angle 40°×40° 40°×40°
Crossover  mode Internal Crossover Internal Crossover
Net weight 29KG 23kg
Size(mm) 580W×760D×580H 580w×760d×580h
