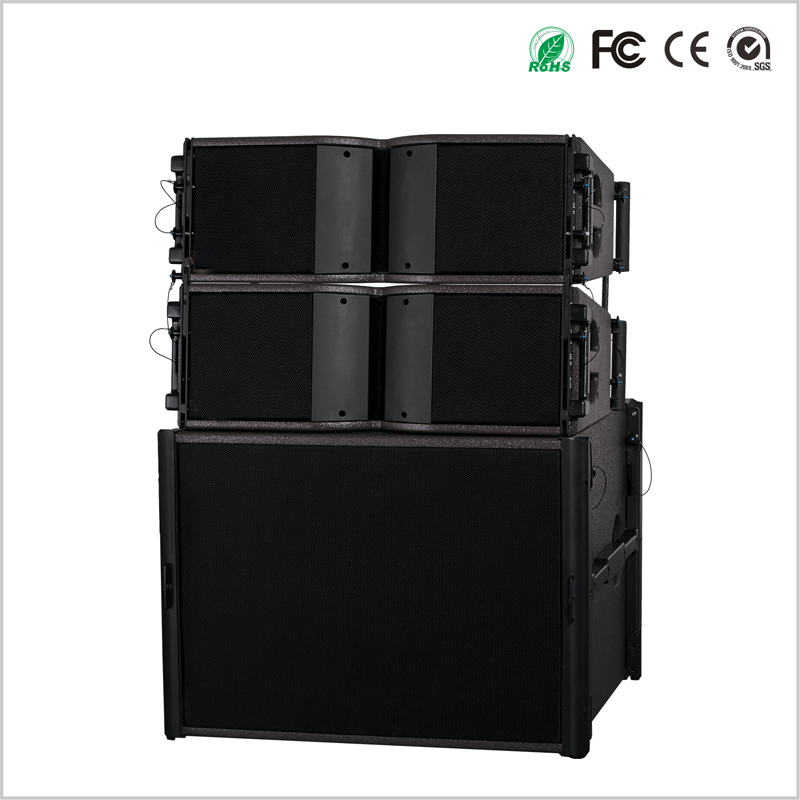

◆The KARA system has a very high performance, the system is smal l in size,
the cabinet is l ight, meets the requirements of l ifting and visual constraints,
and can be used with the SB18 subwoofer to greatly enhance the low frequency
curve. Compared to the old model, the KARA system has considerable
improvements: additional low frequency sources increase bandwidth and
consistency; improved horizontal pointing control; integrated suspension
system and extremely light cabinet, greatly enhancing system vertical Coverage
abi l ity.
◆KARA has a horizontal directivity of 110° and a vertical ly adjustable angle of
up to 10°, which can be optimal ly configured according to the distribution of
the auditorium. The KARA system takes ful l advantage of the wavefront
correction technology to deliver clear, precise sounds and a unique near-field
effect that provides an unparal leled sense of hearing for the l istener.
Specification
MODEL | KARA | SB18 |
System | 2-way full range | Sub-Bass |
Frequency response | 65Hz-20kHz | 40Hz-400KHz |
Driver | LF:2×8" ,HF:3"×1 | LF:18"×1 |
Nominal lmpedance | 16 Ohms | 8 Ohms |
System sensitivity | 99dB | 102dB |
Rated power | 450W | 500W |
Peak power | 1800W | 2000W |
Maximum SPL | 139dB | 135dB |
Crossover mode | Internal/extenal crossovers | External crossovers |
Cover angle(H×V) | 110°×8° | Waterproof |
Connector | 2*NL4 | 2*NL4 |
Product size mm | 700*495*240MM | 750*540*707 MM |
