Multi-functional Wall Mount Active Speaker with Microphone input

Category：Active Speaker

BASIC INFO

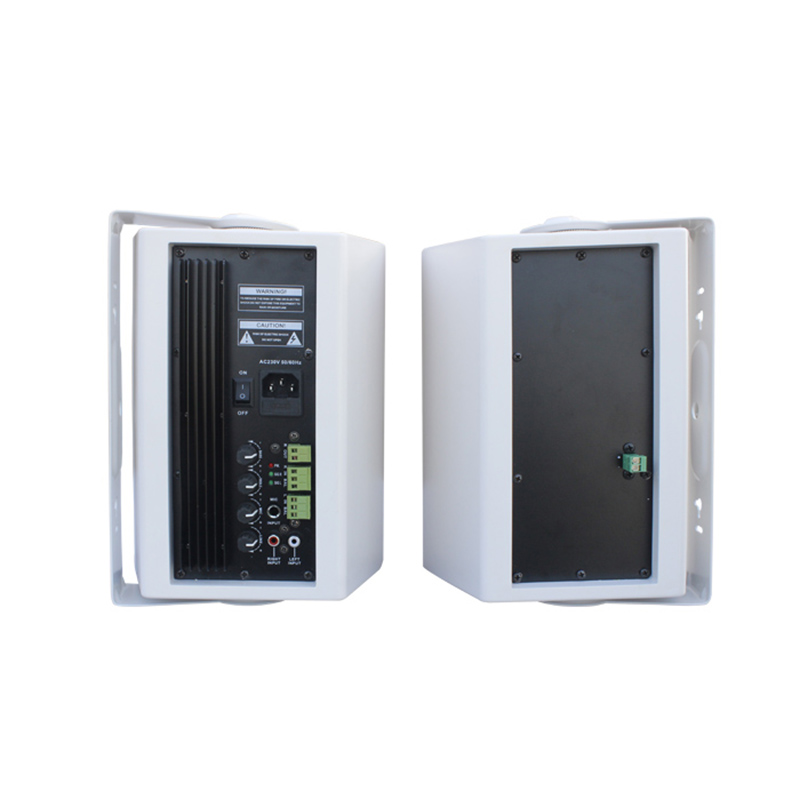

Active Speaker WSK230consists of one main active loudspeaker & one sub passive loudspeaker.

The main active loudspeaker "L" with built-in 2-channel "R" stereo amplifiers 30W*2,
With Phoenix connector ready to be connected to the sub passive loudspeaker "R".

This active loudspeaker system produces good clear sound and acoustical clarity, suitable for AV applications such as meeting rooms,multi-media rooms for small presentations.

White & Black color available

Mainactive loudspeaker "L"
1. Built-in 2-channel digital stereo amplifier (Class D) 30W*2.
2. Rated power 30W.
3. 2-way speaker units woofer 6.5" + tweeter 1".
4. With one 3.5mm MIC jack input.
5. Two groups "L&R" of balance inputs via Phoenix connectors.
6. Two groups "L&R" of imbalance inputs via RCA connectors.
7. Separate volume controls for audio input & microphone input.
8. Bass & Treble controls.
9. LED indicators for POWER,"L" louldspeaker & "R" louldspeaker.

Sub passive loudspeaker "R"
1. Rated power 30W.
2. 2-way speaker units woofer 6.5" + tweeter 1"..
3. Phoenix connector ready to be connected to the main loudspeaker "L".
4. Mounting bracket is supplied.

Model	WSK230(White & Black available)
Rated Power	30W×2@8 ohm
Speaker Units	Woofer 6.5" + tweeter 1"
Amplifier	2-channel digital stereo amplifier (Class D)
Audio Inputs	"L&R" of balance inputs via Phoenix connectors
Audio Inputs	"L&R" of imbalance inputs via RCA connectors
MIC. Input	3.5mm MIC jack
Indicators	LED indicators for POWER,"L" louldspeaker & "R" louldspeaker
Volume Controls	Separate volume controls for audio input & microphone input
Tone Controls	Treble ±10dB, Bass ±10dB
Material	ABS enclosure, metal bracket & grille
Finished	White & Black available
Frequency Response	70Hz-18KHz/1W, ±0.5dB
THD	20Hz-20KHz/1W, 0.05%
Ratio of damping	>200@8 ohm/400Hz
S/N	>98dB
Protection	Over-temperature, overload
Power	AC110V; AC220V-240V/50Hz-60Hz
Dimension	200215295mm
Mounting Method	"U" shaped braket adjustable
Net Weight	7.5Kg (main loudspeaker 4.0Kg,Sub loudspeaker 3.5Kg)
