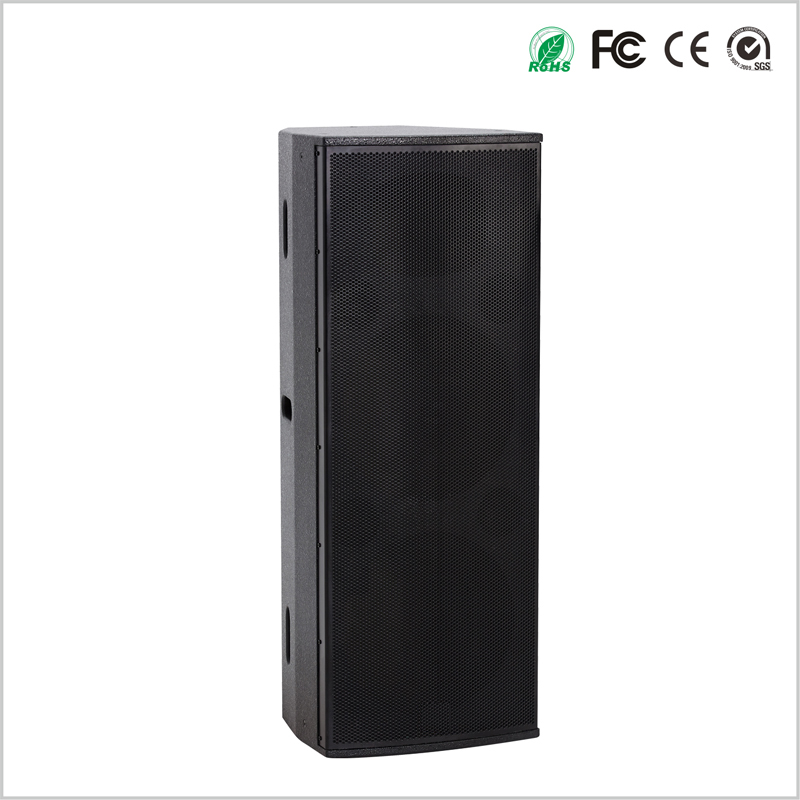

2 Way Dual 15 Inch Professional Speaker

BASIC INFO
  • Description

    ◆The domestic high-qual ity unit is used as the core component, with smooth frequency response and precise coverage angle. The

    sound is crystal clear and transparent, and the space and texture are excel lent.

    ◆A new generation of cost-effective professional speaker system, designed for all kinds of sound reinforcement places such as slow

    rocking bar. It is known for its excel lent conversion characteristics such as high conversion efficiency, strong penetration level,

    dynamic and powerful. Its constant directivity horn and neodymium treble design have almost the same sound field coverage as the

    woofer. The designed matching high-frequency horn and the coverage characteristics of the woofer achieve a smooth transition,

    providing a wide sound coverage angle, natural and open sound. It has a high conversion efficiency, making it easier to match the

    power amplifier, and the drive problem is solved. And through the LMS, SmaartLive and other software to design a rigorous crossover

    circuit, with excellent signal crossover processing performance, and designed with high-pitched dynamic protection circuit, can make

    the speaker effectively protected under the conditions of continuous high output.


    Specification

    Model TF215
    System 2WAY FALL RANGE
    Frequency response 52Hz-18KHz
    Driver LF:15"×2 HF:2.83"×1
    Rated limpedance 4
    System sensitivity 102dB
    Rated power 1000W
    Peak power 4000w
    Maximum SPL 137dB
    Diffusion  Angle 70°×60°
    Crossover  mode internal Crossover
    Net weight 56kg
    Size(mm) 560W×440D×1160H
    Package size(mm) 500W×550D×1230H
