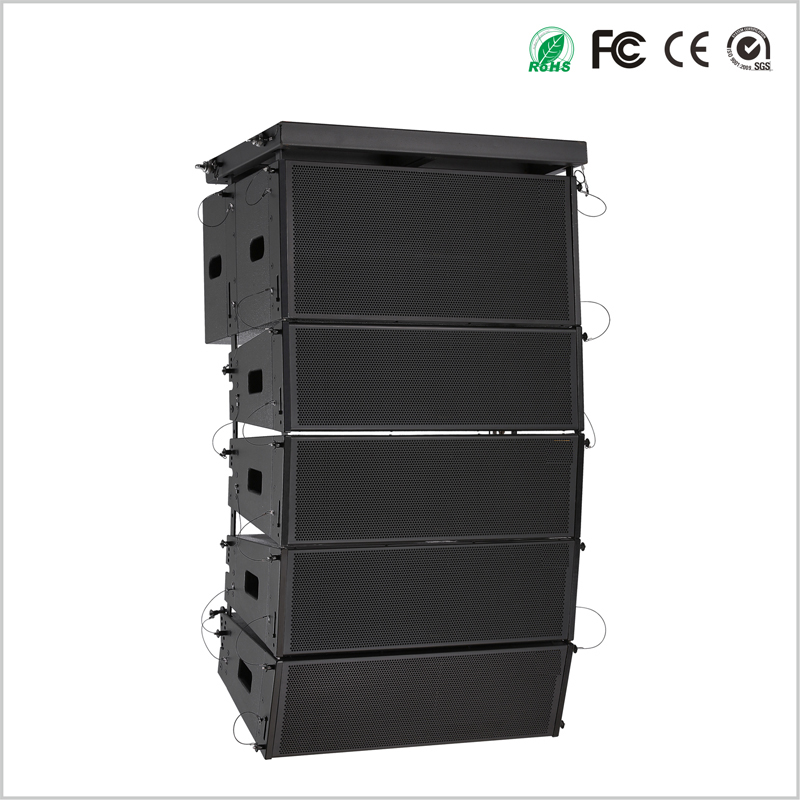

◆Indoor and outdoor performance/fixed instal lation two frequency l ine array
speakers, can deal with unexpected rain weather and water density high
humidity requirements of professional ampl ification.
◆All parts according to the grades of ip46 international dustproof and waterproof
design standards, and particularly on enclosure structure diversion, splash
device is designed. Special production seal ing technology is adopted in the
assembly of the equipment, so as to ensure that the equipment can meet the
dustproof, waterproof and safe features of ip46 level or above, and at the
same time can normally play the function characteristics of high quality sound
reduction.
◆Speakers can adjust the angle of 0 to 10 °, the speaker accessories design
simple and flexible, you just need to 2 engineering personnel easy to form a
system. Therefore, we only need to select an appropriate number of ultra-low
ground components to form a sound amplification system with wide directionality,
long projection distance, high sound pressure and good sense of hearing.
◆Are widely used in the movie theater, multi-function hal l, churches, schools,
large and medium-sized stadiums, and large and medium-sized fami ly the
ampl ification performances, language, etc.
Specification
Model | V6.5 | V6.5A |
System | 2-WAY FULL RANGE | SUB BASS |
Frequency response | 100Hz-18KHz | 55Hz-400KHz |
Driver | LF:2×6.5",HF1×1.73" | LF:15"×1 |
Nomina limpedance | 16Ohms | 8 Ohms |
System sensitivity | 95dB | 100dB |
Rated power | 200W | 500W |
Peak power | 800W | 2000W |
Maximum SPL | 124dB | 133dB |
Disperion Angle | horizon:120° ,verticality:15° | N/M |
Crossover mode | Inside crossovers/External divider | External divider |
Suspension | Linear suspension | Linear suspension |
Net weight | 16.5KG | 32KG |
Package size(mm) | 442W×295D×647H(flight case ) | 602W×800D×483H(flight case ) |
