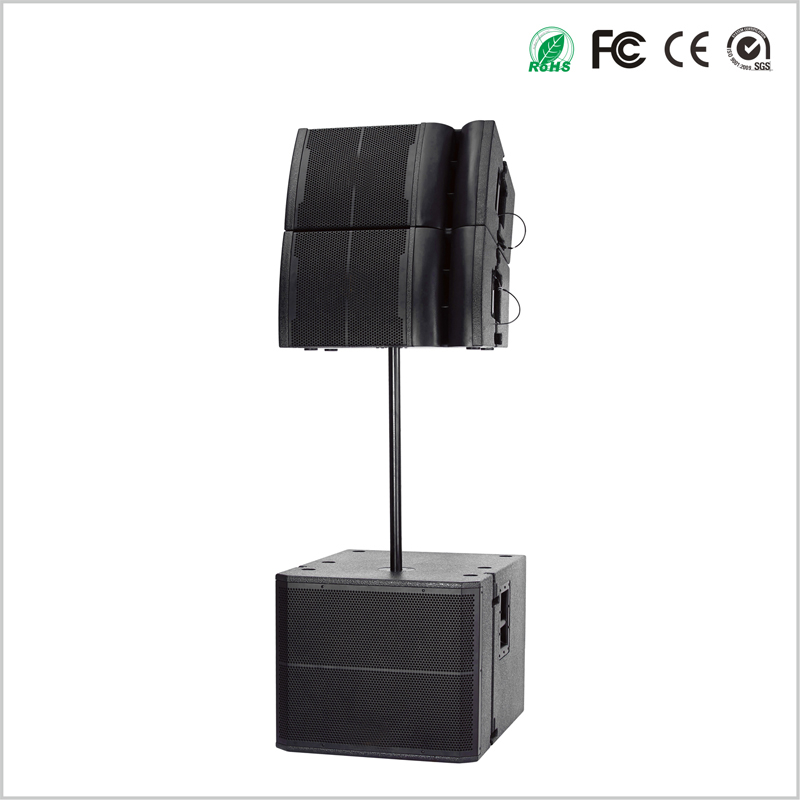

2 Way Single 12 Inch Line Array Speaker

BASIC INFO
Description

◆Al l components are designed according to IP46 international dustproof and

waterproof grade standards, and special flow guiding and anti-splash devices

are designed on the cabinet structure. The equipment is assembled with a

special production seal ing process, so that the equipment can achieve the

high-qual ity sound-reducing function whi le achieving the dust-proof and

waterproof safety features above IP46.

◆The portable line array system can be used for hanging sound as a professional

sound reinforcement for hanging and standing alone on the ground. Therefore,

we only need to select the appropriate number and the ultra-low ground to

form a sound reinforcement system with wide directivity, long projection

distance, high sound pressure and good hearing.

◆Widely used in theaters, multi-purpose hal ls, churches, schools, large and

medium-sized sports fields, large and medium-sized indoor and outdoor

performances, language reinforcement, etc.


Specification

MODEL C12 C18
System 2 WAY FULL RANGE Sub bass
Frequency response 60Hz-18KHz 40Hz-400Hz
Box Case 18mm plywood case 18mm plywood case
Driver LF:12"×1,HF1.5"×3 LF:18*1
Nominal lmpedance 8 Ohms 8ohms
System sensitivity 450dB 104dB
Rated power 1800W 500W
Peak power 3200W 2000W
Maximum SPL 133dB 137dB
Crossover mode Internal External
Cover Range 120*15 N/A
Suspension Suspension array frame on the floor
Net weight 24KG 37kG
Product size mm(W*D*H) 343×379×595 597×747×515
Package size mm(W*D*H) 440×475×720 642×797×572
