This Media Player is an All-In-One audio source device which accommodates different kinds of audio
sources into one single device with two channels:
Left side media combines a CD-Player,USB/MP3-player and Bluetooth-receiver.
Right side media combines USB/MP3-player,Bluetooth-receiver and a tuner receiver supporting
AM/FM(RDS)/DAB+(DAB).
Listening to DAB+(DAB):
Provides a solution of Digital audio broadcasting (DAB+), the signals of which are transmitted in-band,
on-channel (IBOC). Several stations can be carried within the same frequency spectrum. And with
outstanding features including improved sound quality, reduced fading and multipath effects, enhanced
immunity to weather, noise, and other interference, and expansion of the listener base by increasing the
number of stations that can broadcast within a given frequency band.
Since the DAB system is broadcasted in digital format, DAB system can supply crystal-clear audio and
stable reception even in mobile objects. DAB is a new generation radio which can provide data service
and supplementary multi-media services.
※ The main difference between DAB and DAB+ is the type of audio codec used.
DAB: MPEG2
DAB+: MAEG4 (AAC)
※ This unit can receive both DAB and DAB+ broadcasts.
Remark for the feature of RDS/DAB/DAB+: To lower the cost of this player,RDS/DAB/DAB+ can be
removed for the markets where this feature is not compulsory.

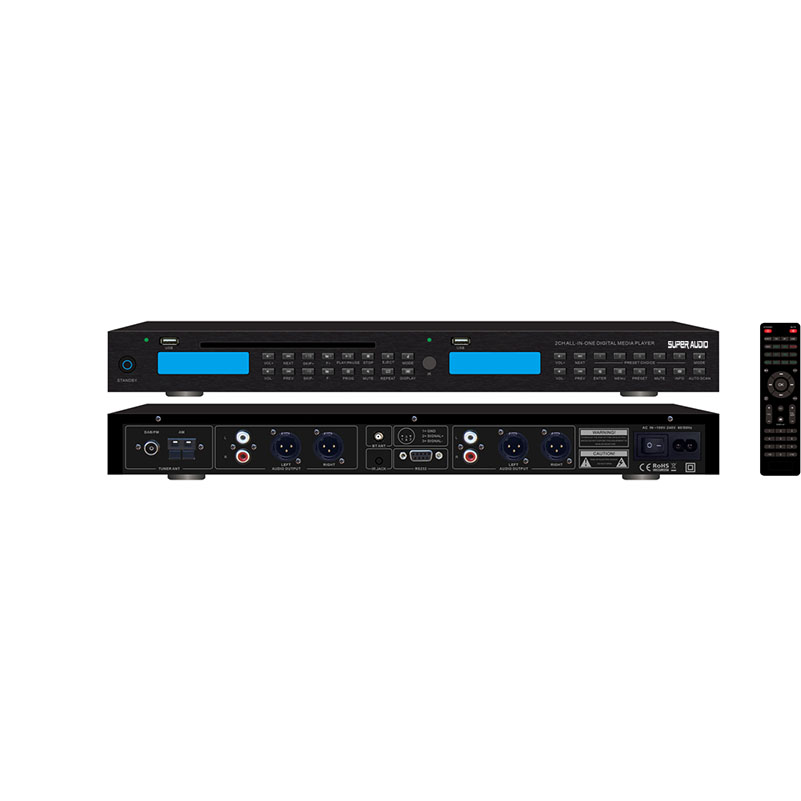

On the rear side:
Each channel has its own stereo outputs provided with RCA & XLR connection interface.
Because of the two separate stereo outputs,the two channels can operate simultaneously. This feature
can be useful for applications such as Multi-Zone systems where multiple audio sources are required at
the same time.
A RS232 serial interface that can be used for external control of the host device and to configure settings.In the
serial remote control function, a host such as a computer is connected to the unit.
By sending control commands from the host to the unit, the unit can be operated.
This player can be operated through the front panel pushbuttons,also can be done through its remote
control.
Removable rack mounting brackets are supplied,1U height design for installation in standard equipment rack or on desk.
