◆The domestic high-qual ity unit is used as the core component, with smooth frequency response and precise coverage angle. The
sound is crystal clear and transparent, and the space and texture are excel lent.

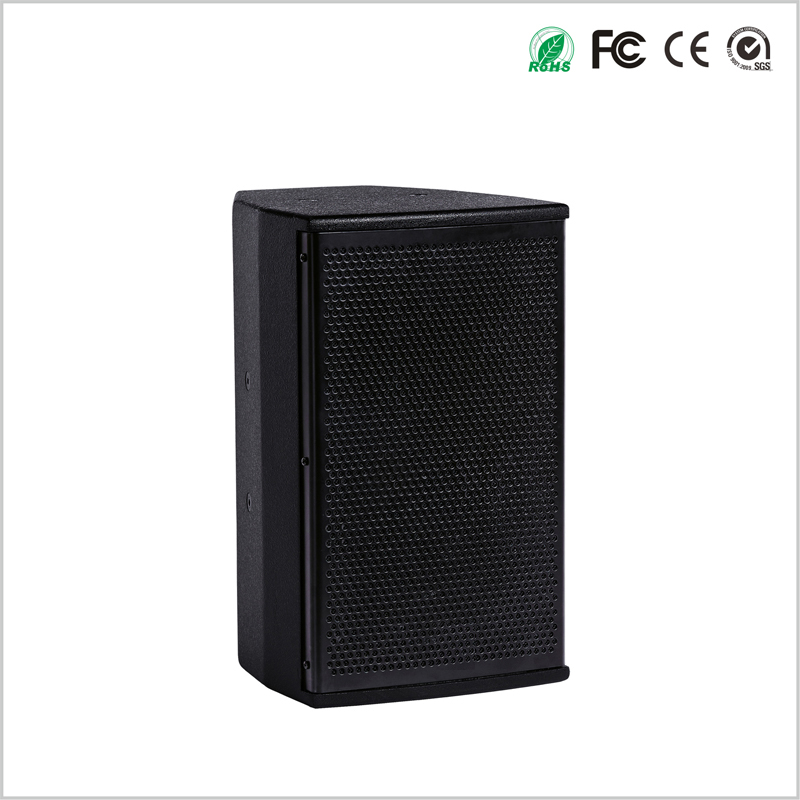

◆A new generation of cost-effective professional speaker system, designed for all kinds of sound reinforcement places such as slow
rocking bar. It is known for its excel lent conversion characteristics such as high conversion efficiency, strong penetration level,
dynamic and powerful. Its constant directivity horn and neodymium treble design have almost the same sound field coverage as the
woofer. The designed matching high-frequency horn and the coverage characteristics of the woofer achieve a smooth transition,
providing a wide sound coverage angle, natural and open sound. It has a high conversion efficiency, making it easier to match the
power amplifier, and the drive problem is solved. And through the LMS, SmaartLive and other software to design a rigorous crossover
circuit, with excellent signal crossover processing performance, and designed with high-pitched dynamic protection circuit, can make
the speaker effectively protected under the conditions of continuous high output.
Specification
Model | TF15 | TF12 | TF10 |
System | 2WAY FALL RANGE | 2WAY FALL RANGE | 2WAY FALL RANGE |
Frequency response | 60Hz-18Hz | 70Hz-18Hz | 70Hz-18Hz |
Driver | LF:15"×1 HF:2.83"×1 | LF:12"×1 HF:1.34"×1 | LF:10"×1 HF:1.34"×1 |
Rated limpedance | 8Ohms | 8 | 8 |
System sensitivity | 100dB | 98dB | 97dB |
Rated power | 500W | 350W | 300W |
Peak power | 2000w | 1400W | 1200W |
Maximum SPL | 131dB | 125dB | 122dB |
Diffusion Angle | 70°×60° | 120°×60° | 120°×60° |
Crossover mode | internal Crossover | internal Crossover | internal Crossover |
Net weight | 30kg | 20kg | 14kg |
Size(mm) | 440W×484D×730H | 350W×385D×602H | 300W×340D×525H |
Package size(mm) | 492W×532D×700H | 440W×475D×700H | 395W×425D×620H |
