Descriptions

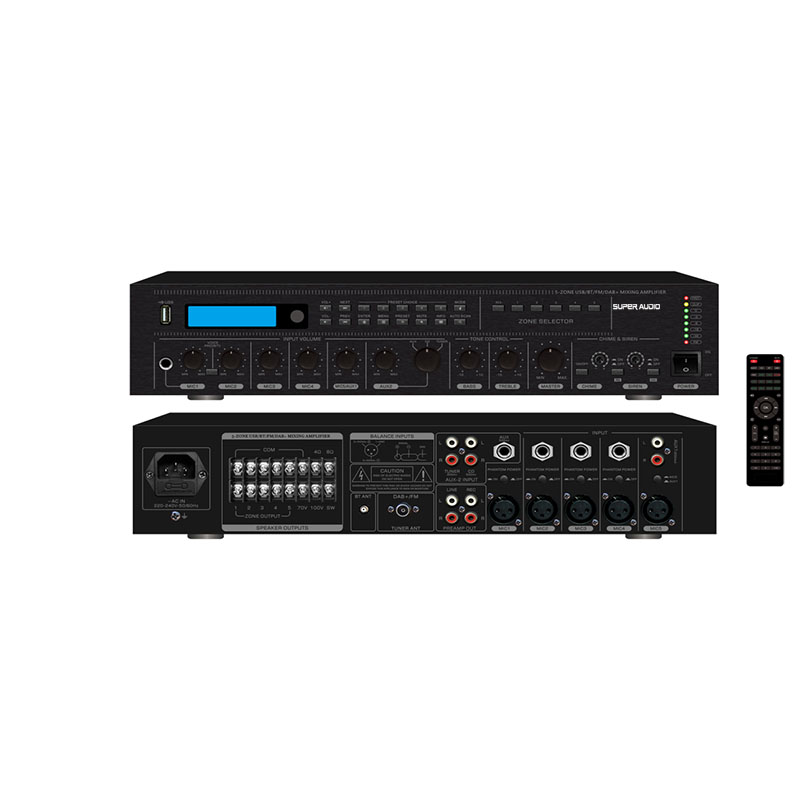

These Mixing Amplifiers are designed as convenient solution which accommodates different kinds of
audio sources including USB/MP3-player,Bluetooth-receiver and a tuner receiver supporting
FM(RDS)/DAB+(DAB).
This series of pa amplifiers also possess two groups of AUX inputs,one group of AUX outputs,and five
microphone inputs,the MIC1 input overrides the other audio sources.A digital screen displays the
working status of playing program,which can be controlled by the front panel buttons or the remote
control.
Built-in CHIME and SIREN circuitry with individual control on front panel.120/240/350 watts of amplifier
power are available.Featured an industry leading 5 zoned 70 or 100 volt load solution provides an audio
output to 5 different zones within the venue,each zone has its own separate switch on/off manually
operated on front panel.
All units feature protections against operation under quite severe misuse such as over temperature,
over voltage,over load and short circuit speaker line conditions.Widely used in the small to medium
distributed speaker systems for PA,paging,or background music.

Features
5-ZONE USB/BT/FM/DAB+ MIXING AMPLIFIER
※ Individual LED indicator for POWER/SIGNAL/PROTECTION.
※ Mic 1 has priority over the other inputs.
※ Individual and master volume control.
※ Removable rack mounting brackets supplied.
※ Built-in Chime and Siren circuitry with push-button and volume control.
※ BASS and TREBLE tone controllers.
※ High-definition display for the working status of playing program.
※ Complete protection provided for output short circuit,overload,high temperature.
※ 70/100-volt and 4/8 ohms(Ω) output loads.
※ 5 Zones 70V or 100V speaker outputs with separate switch ON/OFF.
※ Compatible media:USB,Bluetooth,FM(RDS),DAB+(DAB),Aux In.
※ 120W/240W/350W power outputs available.
※ 2 groups of Aux inputs,1 group of Aux outputs.
※ Five 48V Phantom Power microphone jacks,and four 6.35mm microphone jacks.
