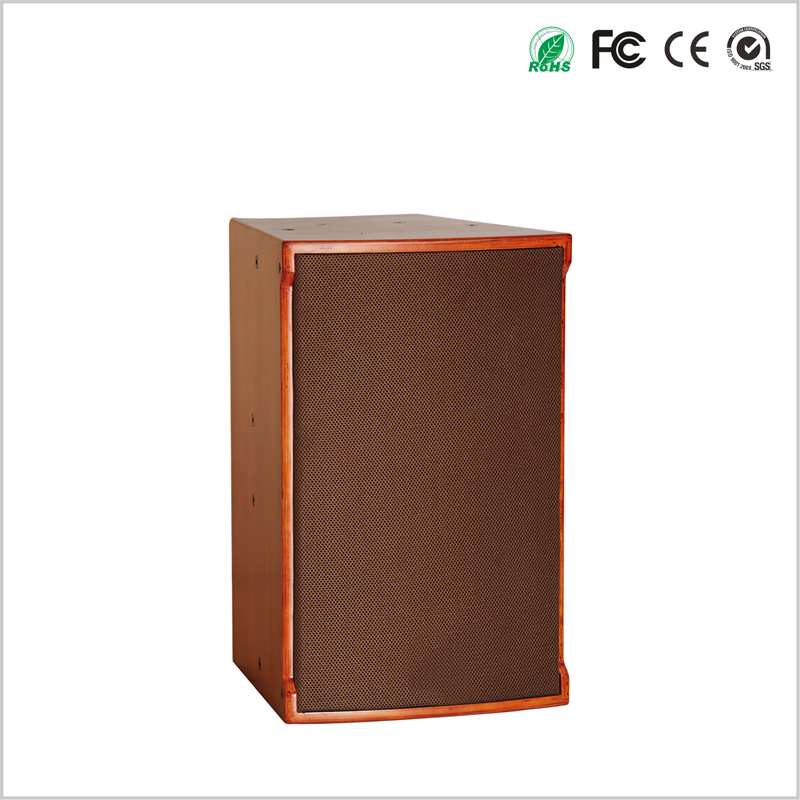

2 Way Single 12 Inch Professional Speaker

BASIC INFO
Description

The domestic high-qual ity unit is used as the core component, with smooth frequency response and precise coverage angle. The

sound is crystal clear and transparent, and the space and texture are excel lent.

A new generation of cost-effective professional speaker system, designed for all kinds of sound reinforcement places such as slow

rocking bar. It is known for its excel lent conversion characteristics such as high conversion efficiency, strong penetration level,

dynamic and powerful. Its constant directivity horn and neodymium treble design have almost the same sound field coverage as the

woofer. The designed matching high-frequency horn and the coverage characteristics of the woofer achieve a smooth transition,

providing a wide sound coverage angle, natural and open sound. It has a high conversion efficiency, making it easier to match the

power amplifier, and the drive problem is solved. And through the LMS, SmaartLive and other software to design a rigorous crossover

circuit, with excellent signal crossover processing performance, and designed with high-pitched dynamic protection circuit, can make

the speaker effectively protected under the conditions of continuous high output.


Specification

Model KES7120 KES7110
System 2WAY FALL RANGE 2WAY FALL RANGE
Frequency response 48Hz-20KHz 48Hz-20Hz
Driver LF:12"×1 HF:3"×1 LF:12"×1 HF:1.73"×1
Rated limpedance 8 8Ohms
System sensitivity 101dB 101dB
Rated power 400W 300W
Peak power 1600w 1200w
Maximum SPL 135dB 133dB
Diffusion  Angle 70×50 70×60
Crossover  mode internal Crossover internal Crossover
Net weight 20kg 14kg
Size(mm) 460W×480D×710H 360W×357D×610H
Package size(mm) 643W×695D×1355H 650W×620D×750H
